6ES7136-6DB00-0CA0 ET 200SP F-DQ 4x24V DC/2A Safety Output SIL3/PL e | Siemens

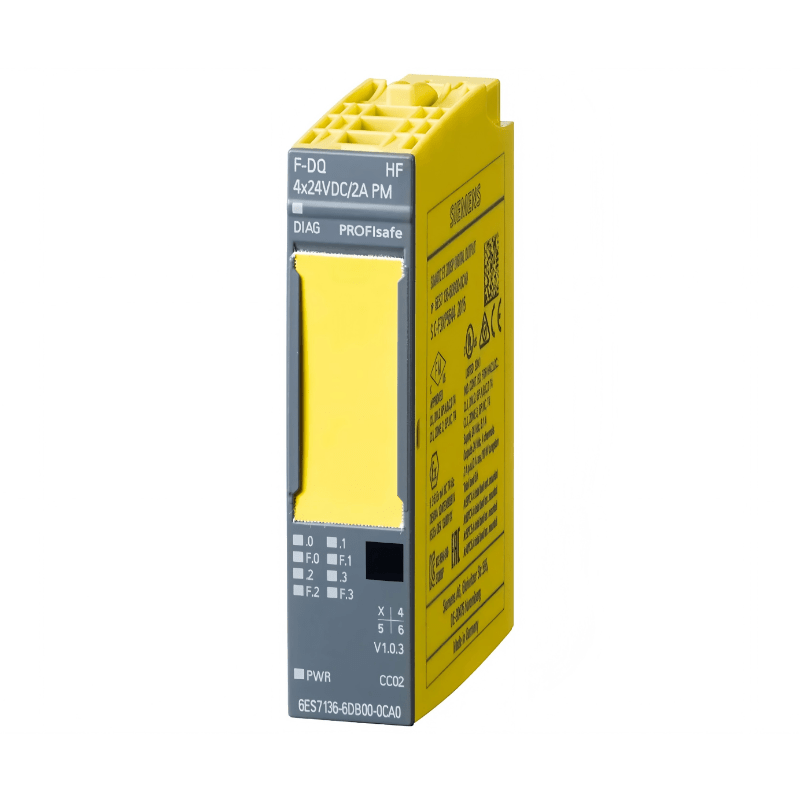

The Original New Siemens 6ES7136-6DB00-0CA0 SIMATIC ET 200SP F-DQ 4x24V DC/2A PM HF is a fail-safe digital output module designed for safety-critical distributed I/O applications in industrial automation. Part of the ET 200SP family, this module provides 4 fail-safe outputs with PM (P‑switching and M‑switching) redundant output stage, delivering up to 2A per channel for high-current actuator control. Certified to SIL 3 (IEC 61508) and PL e (ISO 13849‑1), it is suitable for emergency stop circuits, safety door monitoring, and light curtain interfaces. Module diagnostics include short‑circuit detection, open‑circuit monitoring, overload protection, and channel‑level fault indication.

Core Engineering Highlights:
4 fail-safe digital outputs | 24V DC / 2A per channel | PM redundant output stage | SIL 3 (IEC 61508) | PL e (ISO 13849‑1) | Short‑circuit, open‑circuit, overload diagnostics | 15 mm width | CC02 colour code | 24V DC nominal | 75mA current consumption | 4W power loss | 0°C to +60°C operating | IP20

Key Features:

• Original New Siemens 6ES7136-6DB00-0CA0 module

• 4 fail-safe digital outputs (24V DC, 2A per channel)

• PM (P-switching and M-switching) redundant output stage for enhanced safety

• Certified safety integrity: SIL 3 (IEC 61508)

• Performance Level: PL e, Category 4 (EN ISO 13849‑1)

• Comprehensive channel diagnostics: short‑circuit, open‑circuit, overload detection

• Short‑circuit protection with >3.3A response threshold

• Open‑circuit detection with 8mA response threshold

• Overload protection with 2.9A response threshold

• Suitable for BU type A0 base units

• Colour code CC02 for visual identification

• I&M data support (I&M0 to I&M3)

• 2A per channel output, 6A total per module (derating applies)

• 30Hz switching frequency (resistive load)

• 15 mm width for high-density mounting

• DIN rail mounting, IP20 protection

• Engineering via TIA Portal V12 or higher / STEP 7 V5.5 SP3 or higher

• Active product lifecycle

Applications:

• Emergency stop and safety shutdown circuits

• Safety door monitoring and interlock systems

• Light curtain and safety sensor interfaces

• Safety contactor and brake control

• Machine safety and personnel protection systems

• Process safety and SIL 3 rated applications

• Distributed safety I/O with ET 200SP

Technical Specifications:

Electrical Specifications:

Diagnostics & Indication:

Environmental & Physical:

Engineering & Configuration:

System Compatibility:

• Siemens SIMATIC ET 200SP distributed I/O system

• ET 200SP interface modules (IM155-6PN, IM155-6MF, etc.)

• PROFIsafe communication protocol

• SIMATIC S7-1200F, S7-1500F safety controllers

• TIA Portal engineering framework (V12 or higher)

• STEP 7 V5.5 SP3 or higher

• BU type A0 base units

PM vs PP Output Stage:
The 6ES7136-6DB00-0CA0 features PM (P-switching and M-switching) redundant output stage, where both the P-side and M-side of the output channel have control switches that are simultaneously switched on or off according to the output address state. This design enables the module to perform switch-on tests, where the P and M switches are pulsed alternately when the output is not activated, with test circuitry reading back the status for diagnostics. This provides enhanced diagnostic coverage compared to PP (P-switching only) output modules.

Typical System Architecture:
ET 200SP Interface Module (e.g., IM155-6PN)
↓
6ES7136-6DB00-0CA0 F-DQ Safety Output Module (4 channels, 15 mm width)
↓
PROFIsafe Communication → S7-1200F / S7-1500F Safety Controller
↓
Safety Actuators (Contactors, Brakes, Valves, Indicator Lamps)
↓
PROFINET Network with PROFIsafe

Related Products:

• 6ES7136-6BA01-0CA0 – F-DI 8x24V DC HF (safety input counterpart)

• 6ES7136-6DC00-0CA0 – F-DQ 4x24V DC/2A PP HF (PP output stage variant)

• 6ES7193-6BP00-0BA0 – BaseUnit BU15-P16+A0+2B (BU type A0)

• 6ES7193-6BP20-0BA0 – BaseUnit BU15-P16+A10+2B (BU type A0 with AUX terminals)

• 6AG1136-6DB00-2CA0 – SIPLUS ET 200SP F-DQ 4x24VDC/2A PM HF (conformal coated, –30…+60°C)
