6ES7155-6AA01-0BN0 ET 200SP IM 155-6PN ST PROFINET Bundle | Siemens

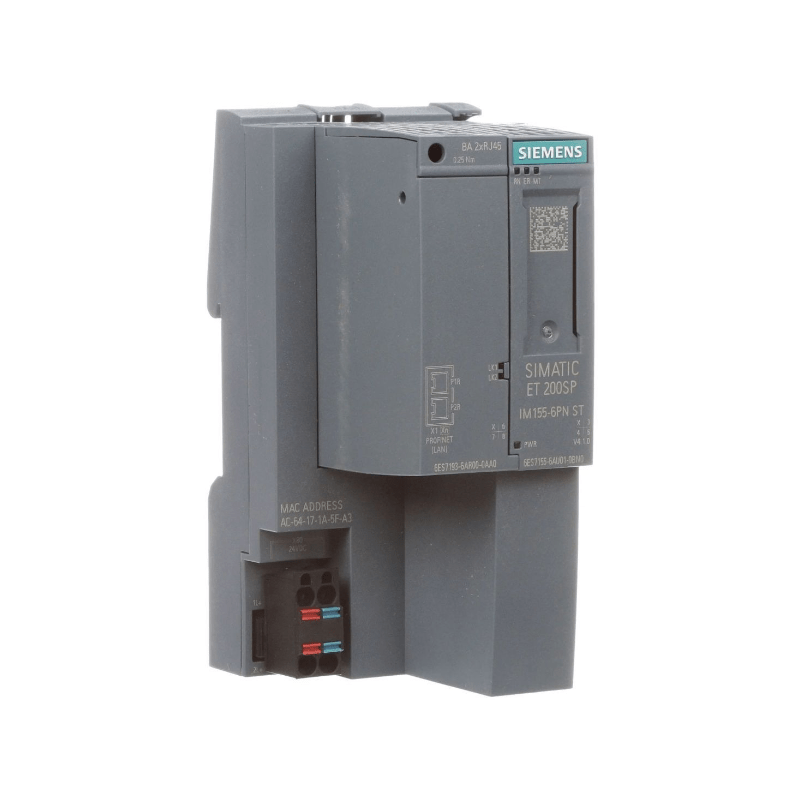

The Original New Siemens 6ES7155-6AA01-0BN0 SIMATIC ET 200SP PROFINET Bundle is a complete interface module package for the ET 200SP distributed I/O system. The bundle consists of the IM 155-6PN ST interface module (6ES7155-6AU01-0BN0), the server module (6ES7193-6PA00-0AA0), and the BusAdapter BA 2xRJ45 (6ES7193-6AR00-0AA0). It supports up to 32 ET 200SP I/O modules and 16 ET 200AL modules with single hot swap capability. The integrated 2‑port switch with RJ45 sockets enables flexible network topologies, making it suitable for high-performance distributed automation in machine and factory automation systems.

Core Engineering Highlights:
PROFINET IO-Device interface | 2‑port switch with integrated RJ45 sockets | Up to 32 ET 200SP I/O modules + 16 ET 200AL modules | 450 mA current consumption | Single Hot Swap support | Firmware V4.2 | MRP client support | 24V DC supply | 1.9 W typical power loss | 50 mm width | IP20 protection | –30°C to +60°C operating (horizontal)

Key Features:

• Original New Siemens 6ES7155-6AA01-0BN0 bundle

• Complete bundle — includes interface module, server module, and BusAdapter BA 2xRJ45

• PROFINET IO-Device interface for ET 200SP distributed I/O systems

• Integrated 2‑port switch with 2x RJ45 sockets for line and star topologies

• Supports up to 32 ET 200SP I/O modules and 16 ET 200AL modules per station

• Single Hot Swapping for online module replacement without system downtime

• MRP (Media Redundancy Protocol) client support for network reliability

• I&M identification data support (I&M0 to I&M3)

• Configuration control via dataset for flexible station configuration

• 24V DC power supply with reverse polarity and short‑circuit protection

• Isolation tested with 707V DC (type test)

• Firmware V4.2

• IP20 protection for control cabinet installation

• Engineering via TIA Portal V14 SP1 or higher

• PROFINET GSD support for third‑party integration

Applications:

• High‑performance distributed I/O connection for up to 32 ET 200SP modules

• Machine automation and factory automation systems

• Conveyor and material handling equipment

• Packaging machinery and assembly lines

• Distributed control systems requiring modular I/O expansion

• Multi‑vendor PROFINET network integration

• Replacement or expansion of existing ET 200SP installations

Technical Specifications:

PROFINET Interfaces:

Power Supply:

Current & Power:

Hardware Configuration:

Physical & Environmental:

Engineering & Configuration:

System Compatibility:

• Siemens SIMATIC ET 200SP distributed I/O system

• SIMATIC S7‑1200, S7‑1500, S7‑300, S7‑400 controllers (via PROFINET IO)

• ET 200SP I/O modules (digital, analog, technology) — up to 32 modules

• ET 200AL I/O modules — up to 16 modules

• PROFINET networks (line or star topology)

• TIA Portal engineering framework (V14 SP1 or higher)

Typical System Architecture:
24V DC Power Supply
↓
6ES7155-6AA01-0BN0 IM 155-6PN ST Bundle
│
├── Interface Module (6ES7155-6AU01-0BN0)
├── Server Module (6ES7193-6PA00-0AA0)
├── BusAdapter BA 2xRJ45 (6ES7193-6AR00-0AA0)
├── 2‑port switch with integrated RJ45 sockets → PROFINET Network
├── Up to 32 ET 200SP I/O Modules
├── Up to 16 ET 200AL Modules
├── Single Hot Swap Support
│
↓
PROFINET IO Controller (S7‑1200 / S7‑1500 / S7‑300 / S7‑400)
↓
TIA Portal Engineering (V14 SP1 or higher)

Related Products:

• 6ES7155-6AU01-0BN0 – IM 155-6PN ST interface module (part of this bundle)

• 6ES7193-6PA00-0AA0 – Server module for ET 200SP (part of this bundle)

• 6ES7193-6AR00-0AA0 – BusAdapter BA 2xRJ45 (part of this bundle)

• 6ES7155-6AR00-0AN0 – IM 155-6PN Basic (up to 12 modules, lower performance)

• 6ES7131-6BH01-0BA0 – DI 16x24V DC Standard (digital input module)

• 6ES7132-6BH01-0BA0 – DQ 16x24V DC/0.5A Standard (digital output module)

• 6ES7193-6BP00-0BA0 – BaseUnit BU15-P16+A0+2B (BU type A0)
