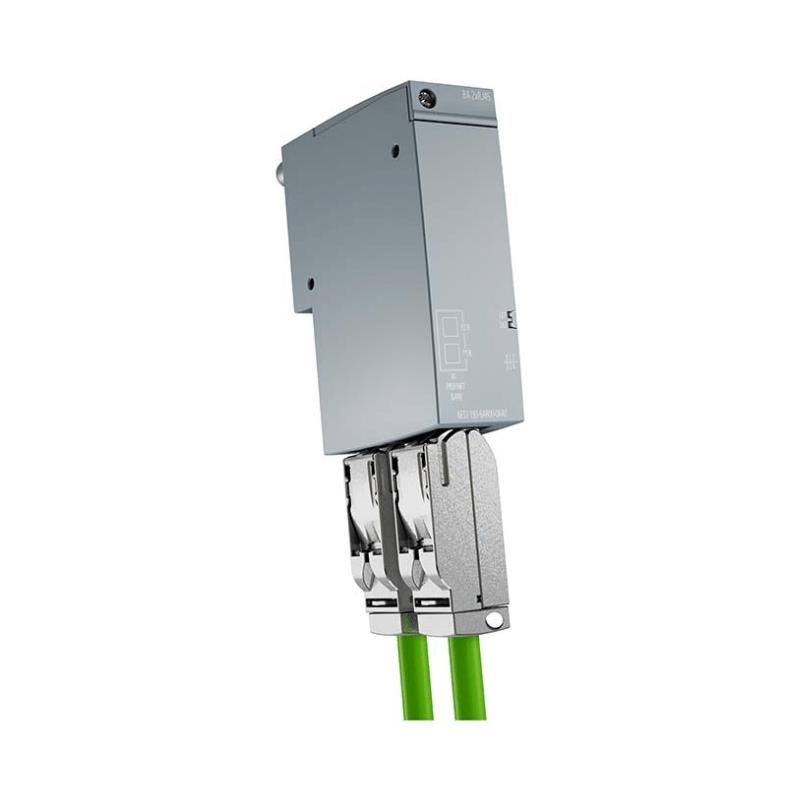

The Original New Siemens 6ES7193-6AR00-0AA0 SIMATIC ET 200SP BusAdapter BA 2xRJ45 is a PROFINET bus adapter for the ET 200SP distributed I/O system. It provides the physical connection between the interface module and the PROFINET network, featuring two RJ45 sockets with an integrated 2-port switch for flexible network topologies. This adapter enables connection of ET 200SP stations to Industrial Ethernet networks, supporting line, star, or tree topologies without additional switches. The BA 2xRJ45 is required for standard-compliant operation of ET 200SP PROFINET IO controllers and devices.

Core Engineering Highlights:
1 PROFINET interface with integrated 2‑port switch | 2x RJ45 sockets | 10/100 Mbps | Supports line, star, tree topologies | 100 m max cable length | 20 mm width | 46 g weight | –30°C to +60°C horizontal / –30°C to +50°C vertical | IP20 | Hot‑swap capable

Key Features:

• Original New Siemens 6ES7193-6AR00-0AA0 BusAdapter

• 2x RJ45 sockets for flexible PROFINET connection

• Integrated 2‑port switch for line, star, and tree topologies

• 10/100 Mbps transmission rate, auto‑negotiation

• Required for standard-compliant operation of ET 200SP PROFINET IO controllers (e.g., CPU 1512SP‑1 PN) and IO devices

• Hot‑swap capable for online replacement without system downtime

• Compact 20 mm width for high‑density mounting in space‑constrained cabinets

• Simple replacement of damaged RJ45 interfaces without replacing the entire interface module

• Provides flexibility to switch between copper, POF, HCS, or fiber optic connections via different BusAdapter variants

• IP20 protection for control cabinet installation

• DIN rail mounting

• RoHS compliant

Applications:

• Physical PROFINET connection for ET 200SP interface modules

• Distributed I/O system integration into Industrial Ethernet networks

• Line, star, or tree topology network configurations

• ET 200SP PROFINET IO controller and IO device operation

• Machine automation and factory automation systems

• Space‑constrained control cabinets requiring high‑density mounting

Technical Specifications:

System Compatibility:

• Siemens SIMATIC ET 200SP interface modules (IM155‑6PN, IM155‑6MF, etc.)

• ET 200SP PROFINET IO controllers (e.g., CPU 1512SP‑1 PN)

• PROFINET networks with line, star, or tree topologies

• Copper twisted‑pair Ethernet cables (up to 100 m)

Typical System Architecture:
ET 200SP Interface Module (e.g., IM155‑6PN)
↓
6ES7193-6AR00-0AA0 BusAdapter BA 2xRJ45 (plugs into interface module)
│
├── 2x RJ45 Sockets (switch integrated)
│ ├── PROFINET Network (line, star, or tree topology)
│ └── Additional ET 200SP Stations / IO Devices
│
↓
PROFINET IO Controller (e.g., S7‑1500 CPU)
↓
TIA Portal Engineering

Related Products:

• 6ES7193-6AF00-0AA0 – BusAdapter BA 2xFC (FastConnect)

• 6ES7193-6AR00-0AA0 – BusAdapter BA 2xRJ45 (current model)

• 6ES7193-6AP00-0AA0 – BusAdapter BA 2xSCRJ (fiber optic)

• 6ES7155-6AA01-0BN0 – IM155‑6PN ST bundle (includes BA 2xRJ45)

• 6ES7155-6AU01-0BN0 – IM155‑6PN ST interface module (without BusAdapter)

• 6ES7193-6PA00-0AA0 – Server module for ET 200SP
