6ES7193-6BP00-0BA0 ET 200SP BaseUnit BU15-P16+A0+2B Type A0 | Siemens

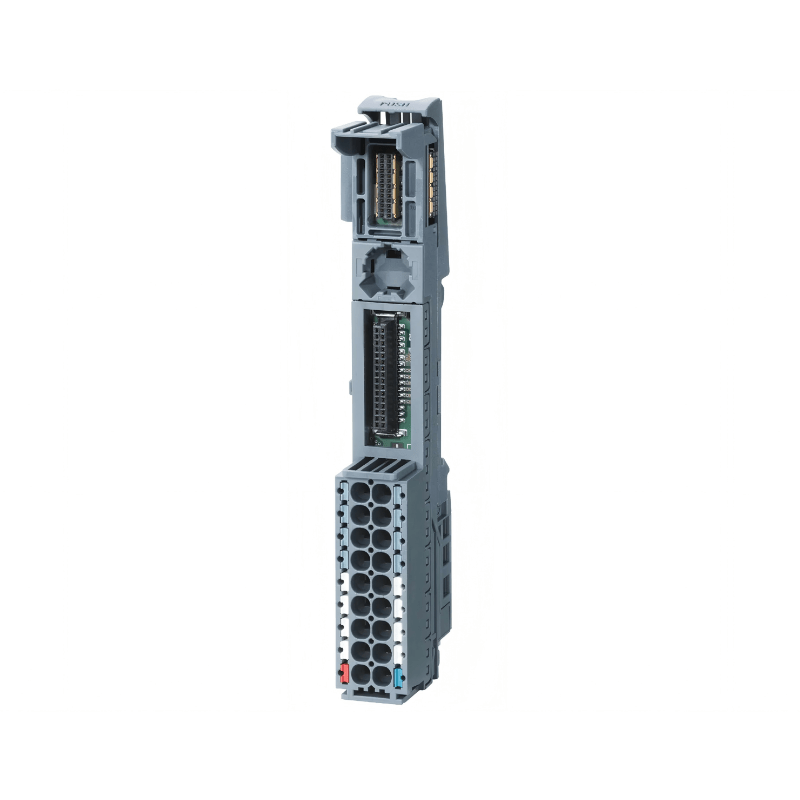

The Original New Siemens 6ES7193-6BP00-0BA0 SIMATIC ET 200SP BaseUnit is a Type A0 base unit (BU) designed for the ET 200SP distributed I/O system. It provides the mechanical and electrical connection between I/O modules and the backplane bus, serving as the foundation for ET 200SP system configuration. Featuring Push-In terminals, this 15 mm wide base unit supports 16 process terminals and bridges the potential group from the left. It is compatible with all I/O modules of BaseUnit type "A0/A1" and is identified by the last two digits in the article number.

Core Engineering Highlights:
15 mm width | BU type A0 | 24V DC nominal supply voltage | 10A current carrying capacity for P1/P2 bus | 2A for process terminals | Push-In terminals | 16 process terminals | Bridged to the left | No AUX terminals | 1 slot for I/O module | -30°C to +60°C horizontal / -30°C to +50°C vertical | IP20 protection | Automatic encoding | HW functional status from FS06

Key Features:

• Original New Siemens 6ES7193-6BP00-0BA0 BaseUnit

• BU type A0 — compatible with all ET 200SP I/O modules of type A0/A1

• 15 mm width for high-density mounting in space-constrained control cabinets

• Push-In terminals for tool‑free, fast and reliable wiring

• 16 process terminals per slot for standard I/O module connection

• Without AUX terminals — for applications not requiring auxiliary terminals

• Bridged to the left — continues the potential group from the left side

• Not a new potential group — load group continues from the left

• Automatic encoding for correct module assignment

• 1 slot for I/O module (Type A0)

• 24V DC supply voltage with external 10A miniature circuit breaker protection (Type B or C)

• IP20 protection rating for indoor use

• Operating temperature: –30°C to +60°C (horizontal) / –30°C to +50°C (vertical)

• Isolation tested with 707V DC

Applications:

• ET 200SP distributed I/O system configuration

• Digital and analog I/O module mounting and connection

• Factory automation and process control systems

• Machine automation and control panel installations

• Space-constrained applications requiring 15 mm width

• Systems requiring potential group continuation from the left

Technical Specifications:

System Compatibility:

• Siemens SIMATIC ET 200SP distributed I/O system

• All ET 200SP I/O modules of BaseUnit type "A0/A1"

• ET 200SP interface modules (IM155-6PN, IM155-6MF, etc.)

• SIMATIC S7-1200, S7-1500, S7-300, S7-400 controllers via PROFINET/PROFIBUS

• TIA Portal engineering framework

• Color coding labels: CC00 to CC09 for process terminals

Colour Code Compatibility:

• The 6ES7193-6BP00-0BA0 supports colour coding labels CC00 to CC09

• Compatible with I/O modules using colour codes CC00 to CC05 (e.g., DI 16x24V DC Standard with CC00, DI 8x24V DC High Feature with CC01, etc.)

Typical System Architecture:
ET 200SP Interface Module (e.g., IM155-6PN)
↓
6ES7193-6BP00-0BA0 BaseUnit (BU Type A0, 15 mm)
│
├── I/O Module Installation (e.g., DI 16x24V DC Standard / DQ 16x24V DC/0.5A)
├── Push‑In Terminal Wiring (16 process terminals)
├── Potential Group Continued from Left
│
↓
Additional ET 200SP BaseUnits and I/O Modules
↓
PROFINET / PROFIBUS Network → SIMATIC Controller

Related Products:

• 6ES7193-6BP20-0BA0 – BU15-P16+A10+2B (with 10 AUX terminals, bridged to left)

• 6ES7193-6BP00-0DA0 – BU15-P16+A0+2D (without AUX terminals, new load group)

• 6ES7193-6BP20-0DA0 – BU15-P16+A10+2D (with 10 AUX terminals, new load group)

• 6ES7193-6BP00-2BA0 – BU15-P16+A0+2B (pack of 10)

• 6ES7131-6BH01-0BA0 – DI 16x24V DC Standard (CC00, Type A0 compatible)

• 6ES7132-6BH01-0BA0 – DQ 16x24V DC/0.5A Standard (CC00, Type A0 compatible)

• 6ES7193-6PA00-0AA0 – Server module for ET 200SP
