6ES7214-1HG40-0XB0 CPU 1214C DC/DC/Relay 14DI/10DO/2AI | Siemens

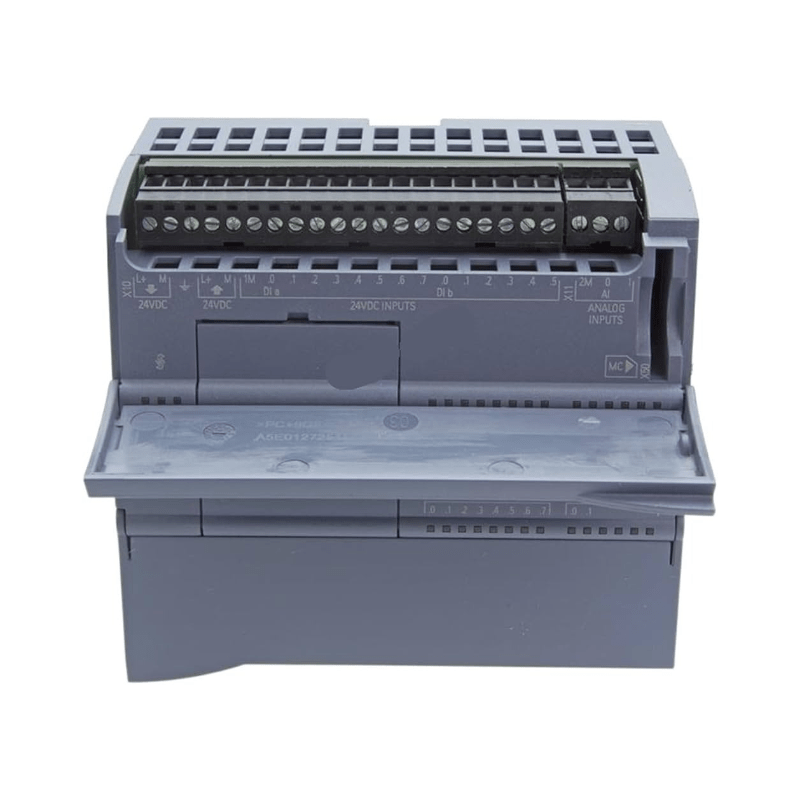

The Original New Siemens 6ES7214-1HG40-0XB0 SIMATIC S7-1200 CPU 1214C is a compact, high-performance programmable logic controller designed for small to medium-scale automation tasks requiring relay output switching. Featuring a DC/DC/relay power supply and onboard I/O configuration with 14 digital inputs, 10 relay outputs (2A per channel), and 2 analog inputs, this CPU offers a highly integrated solution for machine control, conveyor systems, and OEM equipment where isolated AC/DC load switching is required.

Core Engineering Highlights:
14 digital inputs (24V DC) | 10 relay outputs (2A per channel) | 2 analog inputs (0-10V) | 150 KB work memory / 4 MB load memory | 0.085 µs bit processing | PROFINET interface (1 port) | 24V DC supply (20.4–28.8V) | IP20 | –20°C to +60°C operating

Key Features:

• Original New Siemens 6ES7214-1HG40-0XB0 CPU

• 14 onboard digital inputs (24V DC, sink/source configurable)

• 10 onboard relay outputs (2A per channel, 250V AC / 30V DC)

• 2 onboard analog inputs (0-10V DC, 10-bit resolution)

• 150 KB integrated work memory and 4 MB load memory

• 0.085 µs bit processing time for fast program execution

• PROFINET interface (RJ45) for programming and HMI communication

• Maintenance-free data backup without battery — program and data retained in integrated memory

• Real-time hardware clock

• 24V DC power supply (20.4–28.8V range), reverse polarity protected

• Up to 8 signal modules (SM), 1 signal board (SB), and 3 communication modules (CM) per system

• Relay outputs provide electrical isolation between control and field circuits

• Compact 100 x 75 x 75 mm form factor for space-saving control cabinets

• IP20 protection for control cabinet installation

• Interference immunity against high-frequency radiation per IEC 61000-4-6

Applications:

• Small to medium machine automation and control

• Conveyor systems and material handling equipment

• Packaging machinery and assembly lines

• OEM equipment requiring isolated AC/DC load switching

• Pump, fan, and HVAC control systems

• Factory automation and process monitoring

• Applications requiring relay outputs for mixed voltage loads

Technical Specifications:

Supply Voltage:

Current Consumption:

Memory & Performance:

Onboard I/O:

Backplane & Power:

Physical & Environmental:

System Compatibility:

• Siemens SIMATIC S7-1200 series architecture

• TIA Portal engineering framework (STEP 7 V11 or higher)

• S7-1200 signal modules (SM), signal boards (SB), and communication modules (CM)

• SIMATIC Memory Card for program and data storage (optional)

• PROFINET networks (IO-Controller and IO-Device)

• HMI devices via integrated PROFINET interface

Typical System Architecture:
24V DC Power Supply
↓
6ES7214-1HG40-0XB0 CPU 1214C (DC/DC/Relay)
│
├── Onboard I/O: 14 DI / 10 DO (relay, 2A) / 2 AI (0-10V)
├── PROFINET Interface → HMI / SCADA / Programming
│
├── Up to 8 Signal Modules (SM) → Digital / Analog I/O Expansion
├── Up to 1 Signal Board (SB) → Additional I/O on CPU
├── Up to 3 Communication Modules (CM) → RS232 / RS485 / PROFIBUS
│
↓
SIMATIC Memory Card (optional) → Program Backup / Data Logging

Related Products:

• 6ES7214-1AG40-0XB0 – CPU 1214C DC/DC/DC (transistor outputs version)

• 6ES7214-1BG40-0XB0 – CPU 1214C AC/DC/Relay (AC power supply, relay outputs)

• 6ES7212-1HE40-0XB0 – CPU 1212C DC/DC/Relay (lower I/O count, 8DI/6DO/2AI)

• 6ES7222-1HF32-0XB0 – SM 1222 Digital Output Module (8DO relay)

• 6ES7231-4HD32-0XB0 – SM 1231 Analog Input Module (4AI)

• 6ES7274-1XF30-0XA0 – SIMATIC Memory Card for S7-1200

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Siemens, SIMATIC, S7-1200, and TIA Portal are trademarks of Siemens AG.
