6ES7215-1AG40-0XB0 CPU 1215C DC/DC/DC 14DI/10DO/2AI/2AO | Siemens

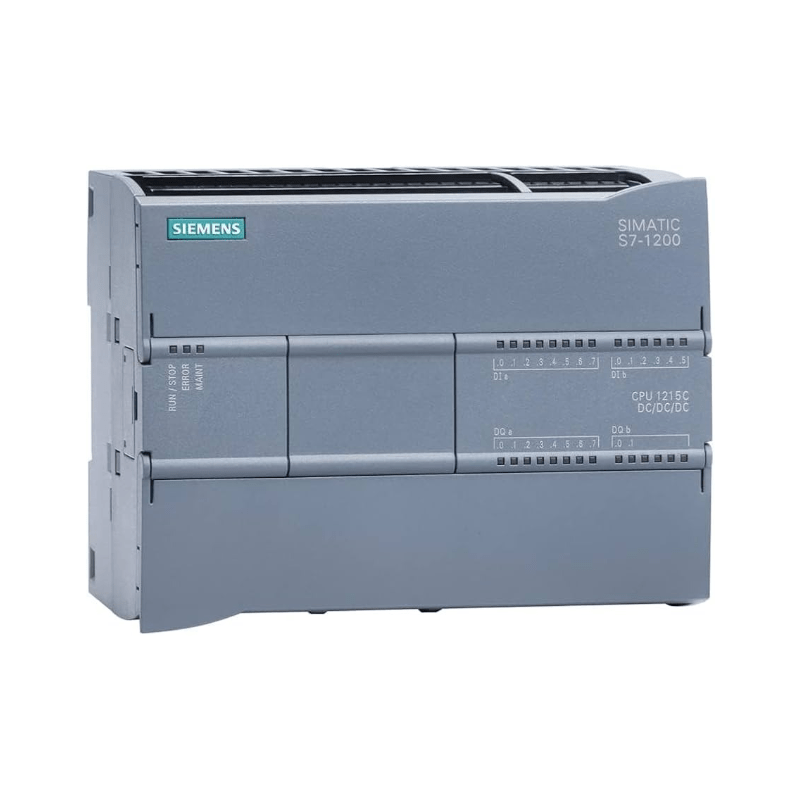

The Original New Siemens 6ES7215-1AG40-0XB0 SIMATIC S7-1200 CPU 1215C is a compact, high-performance programmable logic controller designed for mid-size automation tasks requiring integrated I/O and built-in communication. Featuring a DC/DC/DC power supply and onboard I/O configuration with 14 digital inputs, 10 transistor outputs (sourcing), 2 analog inputs, and 2 analog outputs, this CPU offers a fully integrated solution for machine control, process monitoring, and distributed I/O applications. Two PROFINET ports provide flexible network integration with programming devices, HMIs, or other SIMATIC controllers.

Core Engineering Highlights:
14 digital inputs (24V DC) | 10 digital outputs (24V DC, 0.5A, sourcing) | 2 analog inputs (0-10V) | 2 analog outputs (0-20mA) | 2 PROFINET ports | 200 KB work memory / 4 MB load memory | 0.08 µs bit processing | 24V DC supply | IP20 | TIA Portal V11 SP2 or higher / V20 or higher

Key Features:

• Original New Siemens 6ES7215-1AG40-0XB0 CPU

• 14 onboard digital inputs (24V DC, sink/source configurable)

• 10 onboard digital outputs (24V DC transistor, sourcing, 0.5A per channel)

• 2 onboard analog inputs (0-10V DC, 10-bit resolution)

• 2 onboard analog outputs (0-20mA DC)

• 200 KB integrated work memory and 4 MB load memory

• 0.08 µs bit processing time for fast program execution

• 2 PROFINET ports with integrated switch for programming and communication

• Supports PROFINET IO-Controller and IO-Device, Modbus TCP/IP

• Maintenance-free data backup without battery — program and data retained in integrated memory

• Real-time hardware clock

• 24V DC power supply (20.4-28.8V range), reverse polarity protected

• Up to 8 signal modules (SM), 1 signal board (SB), and 3 communication modules (CM) per system

• Compact 130 x 100 x 75 mm form factor

Applications:

• Mid-size machine automation and control systems

• Conveyor systems and material handling equipment

• Packaging machinery and assembly lines

• Pump, fan, and HVAC control systems

• Factory automation and process monitoring

• Distributed I/O applications with integrated Ethernet connectivity

• Position control applications with high-speed pulse outputs

Technical Specifications:

Supply Voltage:

Current Consumption:

Memory & Performance:

Onboard I/O:

Backplane & Power:

Physical & Environmental:

Engineering & Configuration:

Expansion & Communication:

System Compatibility:

• Siemens SIMATIC S7-1200 series architecture

• TIA Portal engineering framework (STEP 7 V11 SP2 or higher)

• S7-1200 signal modules (SM), signal boards (SB), and communication modules (CM)

• SIMATIC Memory Card for program and data storage

• PROFINET networks (IO-Controller and IO-Device)

• Modbus TCP/IP communication

• HMI devices via integrated Ethernet interface

Typical System Architecture:
24V DC Power Supply
↓
6ES7215-1AG40-0XB0 CPU 1215C (DC/DC/DC)
│
├── Onboard I/O: 14 DI / 10 DO (transistor) / 2 AI (0-10V) / 2 AO (0-20mA)
├── 2 x PROFINET Ports → HMI / SCADA / Programming / Network Redundancy
│
├── Up to 8 Signal Modules (SM) → Digital / Analog I/O Expansion
├── Up to 1 Signal Board (SB) → Additional I/O on CPU
├── Up to 3 Communication Modules (CM) → RS232 / RS485 / PROFIBUS
│
↓
SIMATIC Memory Card (optional) → Program Backup / Data Logging

Related Products:

• 6ES7215-1HG40-0XB0 – CPU 1215C DC/DC/Relay (relay outputs version)

• 6ES7215-1BG40-0XB0 – CPU 1215C AC/DC/Relay (AC power supply, relay outputs)

• 6ES7214-1AG40-0XB0 – CPU 1214C DC/DC/DC (lower I/O count, 14DI/10DO/2AI)

• 6ES7212-1AE40-0XB0 – CPU 1212C DC/DC/DC (lower I/O count, 8DI/6DO/2AI)

• 6ES7231-4HD32-0XB0 – SM 1231 Analog Input Module (4AI)

• 6ES7232-4HD32-0XB0 – SM 1232 Analog Output Module (4AO)

• 6ES7274-1XF30-0XA0 – SIMATIC Memory Card for S7-1200
