6ES7223-1BL32-0XB0 SM 1223 16DI/16DO Digital I/O Module 24V DC | Siemens

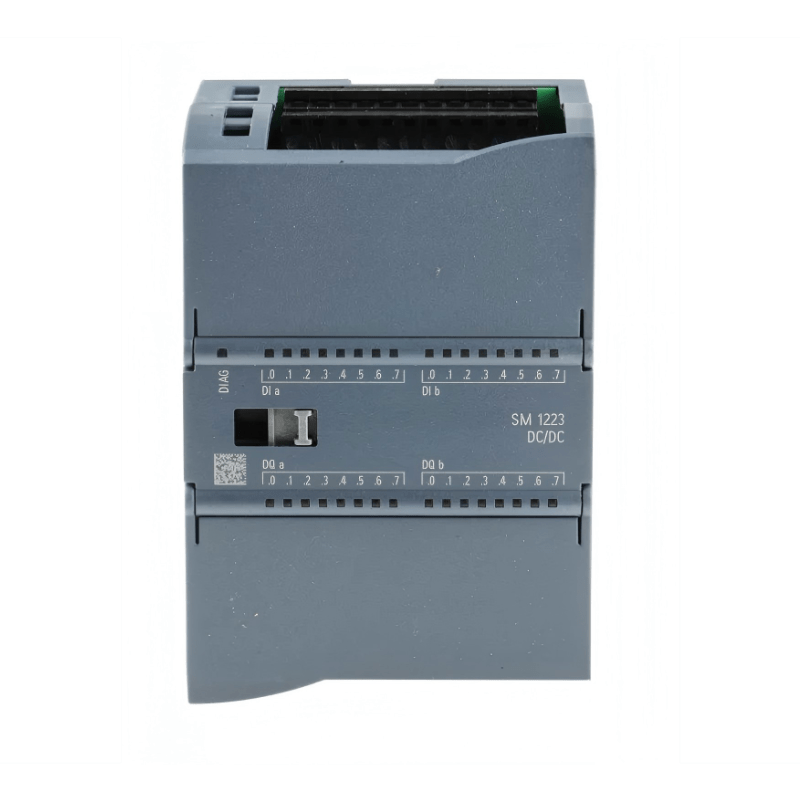

The Original New Siemens 6ES7223-1BL32-0XB0 SIMATIC S7-1200 SM 1223 Digital I/O Module is a high-density signal module designed for efficient I/O expansion in S7-1200 automation systems. It combines 16 digital inputs (24V DC, sink/source configurable) and 16 transistor outputs (0.5A per channel, sourcing) in a single module, providing 32 I/O points in a compact 70 mm width. Fully compatible with all S7-1200 CPUs (except CPU 1211C).

Core Engineering Highlights:
16 digital inputs (24V DC, sink/source) | 16 transistor outputs (24V DC, 0.5A, sourcing) | 0.1 ms / 1.0 ms output delay | Configurable input filter: 0.2–12.8 ms | 125 mA backplane bus current | 2.5 W power loss | 24V DC supply | IP20 protection | –20°C to +60°C operating

Applications:

• High-density digital signal acquisition and actuator control

• Conveyor and material handling systems

• Packaging machinery and assembly lines

• Factory automation and process control

• OEM equipment requiring compact I/O expansion

Technical Specifications:

• Catalog Number: 6ES7223-1BL32-0XB0

• Product Type Designation: SM 1223, DI 16x24V DC, DQ 16x24V DC/0.5A

• Product Family: SIMATIC S7-1200

• Inputs: 16 (24V DC, sink/source)

• Outputs: 16 (transistor, sourcing, 0.5A per channel)

• Input Groups: 2 isolated groups of 8

• Output Groups: 4 isolated groups of 4

• Rated Supply Voltage: 24V DC

• Backplane Bus Current (5V, Max): 125 mA

• Power Loss (Typ.): 2.5 W

• Cable Length (Shielded): 500 m max.

• Cable Length (Unshielded): 150 m max.

• Enclosure Type: IP20

• Dimensions (W x H x D): 70 x 100 x 75 mm

• Operating Temperature: –20°C to +60°C

• Certifications: CE, CSA, UL, cULus, FM, RCM, KC, Marine

System Integration:

• Compatible with all S7-1200 CPUs except CPU 1211C

• Requires TIA Portal engineering framework (STEP 7 Basic / Professional)

• Mounts on DIN rail

• Removable terminal block for simplified wiring

Related Products:

• 6ES7223-1PH32-0XB0 – SM 1223 (8DI/8DO relay)

• 6ES7223-1BH32-0XB0 – SM 1223 (8DI/8DO transistor)

• 6ES7223-1PL32-0XB0 – SM 1223 (16DI/16DO relay)

• 6ES7214-1AG40-0XB0 – CPU 1214C DC/DC/DC
