6ES7232-4HD32-0XB0 SM 1232 4-Channel Analog Output Module ±10V/0-20mA | Siemens

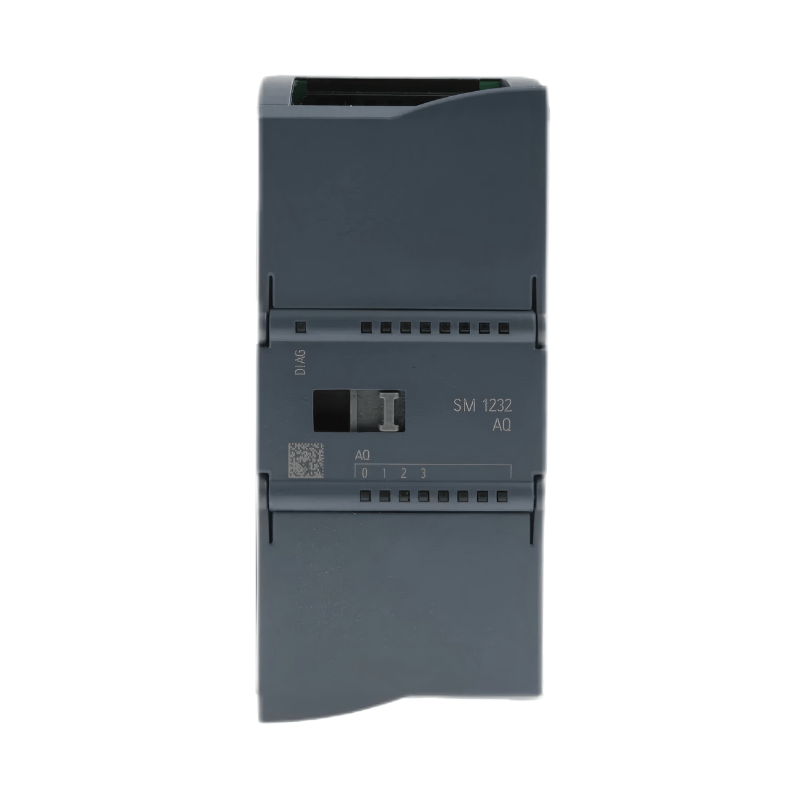

The Original New Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200 SM 1232 Analog Output Module is a 4-channel analog output signal module designed for precise control of actuators, valves, drives, and other analog devices in industrial automation systems. Each of the 4 outputs is individually configurable for voltage (±10V, 14-bit resolution) or current (0-20mA/4-20mA, 13-bit resolution), providing flexible connectivity for a wide range of field devices. Housed in a compact 45 x 100 x 75 mm enclosure and compatible with all S7-1200 CPUs (except CPU 1211C), this module delivers reliable analog output control for machine automation, process control, and OEM applications.

Core Engineering Highlights:
4 analog outputs (voltage/current configurable) | ±10V voltage output range | 0-20mA / 4-20mA current output range | Voltage: 14-bit resolution | Current: 13-bit resolution | ±0.3% accuracy at 25°C | 300 µs settling time (voltage mode) | 1000 Ω min. load impedance (voltage) | 600 Ω max. load impedance (current) | 24V DC supply | 45 mA typical current consumption | 80 mA backplane bus current | 1.5 W typical power loss | Diagnostic alarm, wire break, short-circuit detection | IP20 protection | –20°C to +60°C operating temperature | 100 m shielded cable length

Key Features:

• Original New Siemens 6ES7232-4HD32-0XB0 module

• 4 analog output channels (voltage or current per channel)

• Voltage output range: ±10V (14-bit resolution)

• Current output ranges: 0-20mA, 4-20mA (13-bit resolution)

• Configurable output type and range per channel

• High accuracy: ±0.3% at 25°C, ±0.6% up to 55°C

• Fast settling time: 300 µs (voltage), 600 µs (current)

• Load impedance: voltage ≥1000 Ω, current ≤600 Ω

• 24V DC rated supply voltage (20.4–28.8V range)

• 45 mA typical current consumption; 80 mA from backplane bus

• 1.5 W typical power loss

• Diagnostic alarm function with wire break and short-circuit detection

• LED status indication for output and maintenance diagnostics

• RUN to STOP behavior configurable: last value or substitute value (default 0)

• 100 m shielded twisted-pair cable length

• IP20 protection for control cabinet installation

• 45 x 100 x 75 mm compact form factor

• Compatible with all S7-1200 CPUs (except CPU 1211C)

• CE, CSA, UL, cULus, FM, RCM, KC, and Marine approvals

Applications:

• Speed setpoint control for variable frequency drives and servo motors

• Valve and actuator positioning with 0-20mA or 4-20mA current loops

• Analog signal generation for process control and SCADA systems

• Precision control of proportional valves and electric actuators

• Machine automation and motion control systems

• OEM equipment requiring high-resolution analog output expansion

• Process control applications with multiple analog output requirements

Technical Specifications:

Power Supply:

Accuracy & Performance:

Diagnostics:

Physical & Environmental:

System Compatibility:

• Siemens SIMATIC S7-1200 CPUs (1214C, 1215C, 1217C — all with sufficient I/O capacity)

• TIA Portal V10.5 or higher

• 24V DC power supply

• 0-20mA / 4-20mA current loop devices

• ±10V voltage-controlled actuators and drives

Typical System Architecture:
24V DC Power Supply
↓
S7-1200 CPU (e.g., CPU 1214C DC/DC/DC)
↓
6ES7232-4HD32-0XB0 SM 1232 Analog Output Module (4 channels, 45 mm width)
│
├── 4 x Configurable Outputs → Voltage (±10V) or Current (0-20mA/4-20mA)
├── 14-bit (Voltage) / 13-bit (Current) Resolution → High-Precision Control
├── Diagnostic Alarms → Wire Break / Short-Circuit / Supply Voltage Monitoring
│
↓
Field Devices (Drives, Valves, Actuators, Positioners, Process Controllers)
↓
TIA Portal Engineering (STEP 7 Basic / Professional)

Related Products:

• 6ES7232-4HD32-0XB0 – SM 1232 4-channel analog output module (current model)

• 6ES7232-4HB32-0XB0 – SM 1232 2-channel analog output module

• 6ES7234-4HE32-0XB0 – SM 1234 4AI/2AO combined analog I/O module

• 6ES7231-4HD32-0XB0 – SM 1231 4-channel analog input module (complementary)

• 6ES7214-1AG40-0XB0 – CPU 1214C DC/DC/DC (recommended CPU)

• 6ES7274-1XF30-0XA0 – SIMATIC Memory Card for S7-1200

• 6ES7290-6AA30-0XA0 – Simulation module for S7-1200 (optional)
