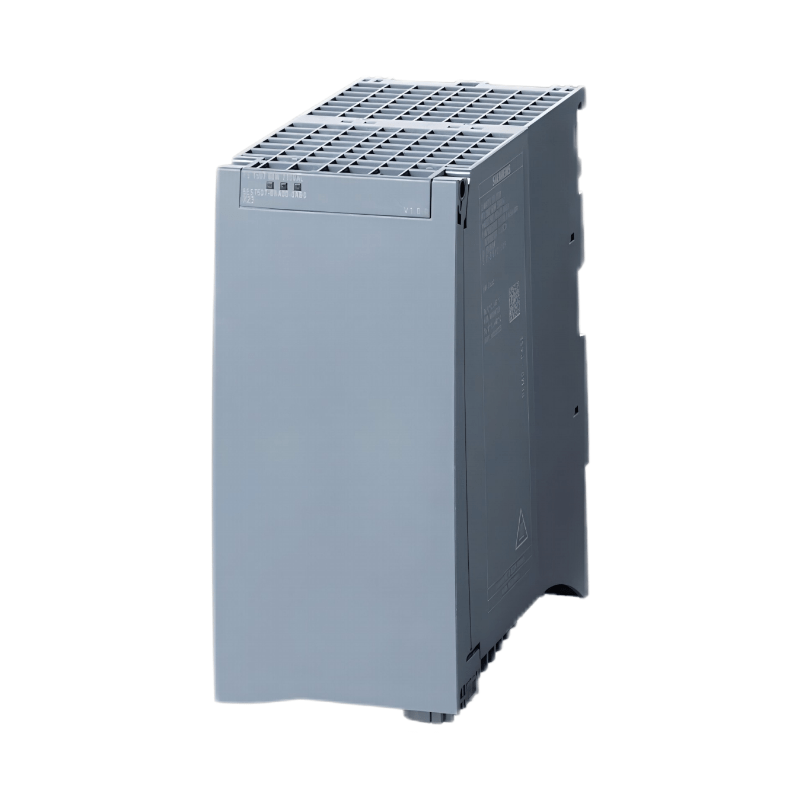

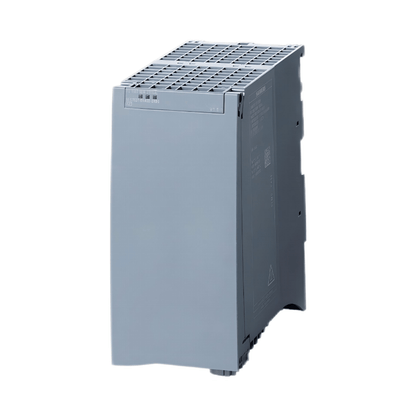

6ES7507-0RA00-0AB0 S7-1500 PS 60W 120/230V AC/DC System Power Supply | Siemens

The Original New Siemens 6ES7507-0RA00-0AB0 SIMATIC S7-1500 PS 60W System Power Supply is a dedicated module designed to provide additional power to the S7-1500 backplane bus for distributed I/O modules and system expansion. Operating from 120/230V AC or DC input, this module is ideal for mains-fed applications. Required when the CPU's integrated power supply is insufficient to support additional I/O modules, it ensures stable and reliable operation of the automation system.

Core Engineering Highlights:
60W infeed power to backplane bus | 120/230V AC/DC wide‑range input (85–264V AC / 88–300V DC) | 20ms mains buffering | 12W power loss | Short‑circuit protection | Reinforced isolation | IP20 protection | 70 x 147 x 129 mm | Approx. 602g | –25°C to +60°C operating (horizontal) | TIA Portal V12 / STEP 7 V5.5 SP3 or higher

Key Features:

• Original New Siemens 6ES7507-0RA00-0AB0 module

• Wide‑range AC/DC input: 120V or 230V AC/DC (85–264V AC / 88–300V DC permissible range)

• 60W infeed power to the S7-1500 backplane bus

• 20ms mains buffering time for reliable operation during voltage dips

• Short‑circuit protection for enhanced safety

• Reinforced isolation between primary and secondary circuits

• Isolation tested at 2,500V DC for 2 seconds (routine test)

• Status indicator for easy monitoring of power supply condition

• DIN rail mounting for standard 35mm rails

• IP20 protection rating for control cabinet installation

• Compact form factor: 70mm width, 147mm height, 129mm depth

• Approx. 602g net weight

• Suitable for horizontal and vertical installation

• TIA Portal V12 / STEP 7 V5.5 SP3 or higher engineering support

• TÜV, CE, UL, CSA, ATEX, EAC, RoHS certified

• Active product lifecycle (PM300)

Applications:

• Providing additional backplane power when the CPU's integrated power supply capacity is exceeded

• Powering S7-1500 systems with high I/O module counts and complex configurations

• Ensuring reliable system operation in demanding industrial automation environments

• Supporting ET 200MP distributed I/O systems

• Replacement or upgrade of existing S7-1500 system power supplies

Technical Specifications:

Supply Voltage:

Input Current:

Output:

Power & Loss:

Isolation & Protection:

Physical & Environmental:

System Compatibility:

• Siemens SIMATIC S7-1500 automation system

• ET 200MP distributed I/O system

• S7-1500 CPUs and I/O modules

• TIA Portal engineering framework (V12 or higher)

• STEP 7 V5.5 SP3 or higher

• 35mm DIN rail mounting

Typical System Architecture:
120/230V AC/DC Mains Supply
↓
6ES7507-0RA00-0AB0 PS 60W System Power Supply
│
├── 60W Infeed Power → S7-1500 Backplane Bus
├── Status Indicator → Power Supply Monitoring
├── Short‑Circuit Protection → System Safety
│
↓
S7-1500 CPU (e.g., CPU 1511-1 PN)
↓
ET 200MP / S7-1500 I/O Modules (Digital, Analog, Safety, Technology)
↓
TIA Portal Engineering (STEP 7 Professional)

Related Products:

• 6ES7505-0RA00-0AB0 – PS 60W 24/48/60V DC System Power Supply (DC input version)

• 6ES7507-0RA00-0AB0 – PS 60W 120/230V AC/DC System Power Supply (current model)

• 6ES7508-0AA00-0AB0 – PS 60W 24/48/60V DC Failsafe System Power Supply

• 6ES7511-1AK02-0AB0 – CPU 1511-1 PN (recommended CPU for this power supply)

• 6ES7590-1AE80-0AA0 – S7-1500 mounting rail (required for installation)

• 6ES7590-5AA00-0AA0 – Shield connector set for S7-1500 modules

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Siemens and SIMATIC are trademarks of Siemens AG.
