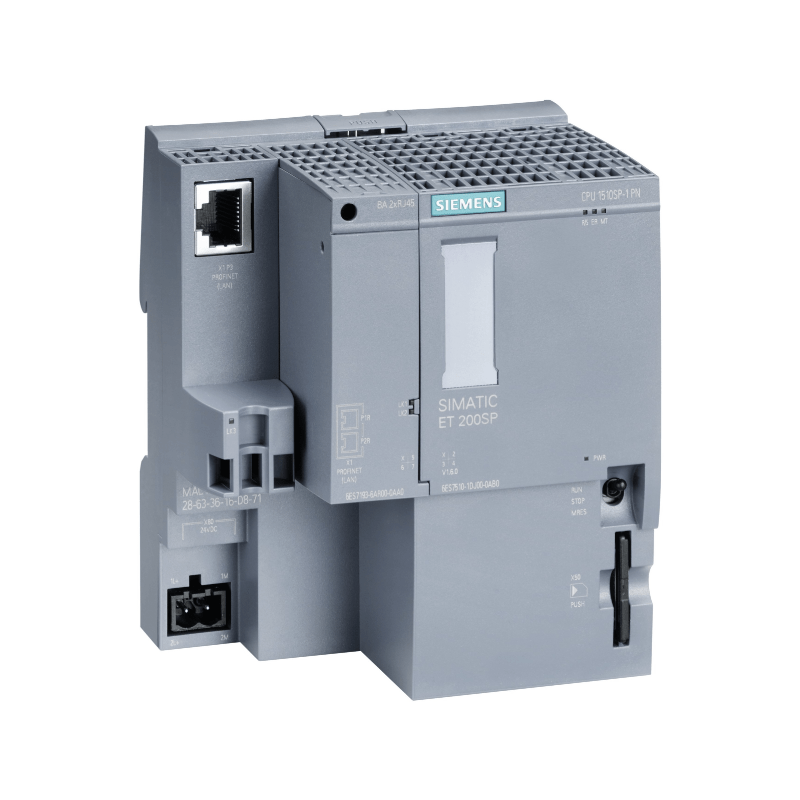

6ES7510-1DJ01-0AB0 CPU 1510SP-1 PN 100KB/750KB 72ns | Siemens

The Original New Siemens 6ES7510-1DJ01-0AB0 SIMATIC ET 200SP CPU 1510SP-1 PN is a central processing unit for the ET 200SP distributed I/O system, delivering S7-1500 controller performance in a compact, modular form factor.Designed for space‑constrained control cabinets, this CPU features a work memory of 100 KB for program and 750 KB for data,72 ns bit performance,and a PROFINET IRT interface with an integrated 3‑port switch.It supports flexible system topologies and acts as a PROFINET IO controller or as distributed intelligence (PROFINET I‑Device).This product is a spare part and has been replaced by the 6ES7510-1DK03-0AB0.

Core Engineering Highlights:
100 KB program / 750 KB data work memory | 72 ns bit performance | PROFINET IRT with 3‑port switch | ET 200SP form factor | Up to 3 PROFINET interfaces (1 onboard + 2 via BusAdapter)| 24V DC power supply | SIMATIC Memory Card required | BusAdapter required for ports 1 and 2

Key Features:

• Original New Siemens 6ES7510-1DJ01-0AB0 CPU

• ET 200SP form factor — designed for compact, modular distributed I/O systems

• 100 KB work memory for program, 750 KB for data

• 72 ns bit performance for efficient processing

• PROFINET IRT interface with integrated 3‑port switch

• Up to 3 PROFINET interfaces — 1 onboard, 2 via BusAdapter (RJ45 or FC)

• Supports PROFINET IO controller and I‑Device operation

• 24V DC power supply with 5 ms power failure buffering

• Reverse polarity protection

• Hot‑swappable (multi‑hot swapping support)

• SIMATIC Memory Card required (not included)

• BusAdapter required for ports 1 and 2 (sold separately)

• I&M data support (I&M0 to I&M3)

• Isochronous mode support (PROFINET, minimum OB 6x cycle 625 µs)

• Configuration control via dataset

• Active product lifecycle (PM410 — product cancelled, spare part only)

Applications:

• Distributed intelligence in ET 200SP I/O systems

• Small to medium machine control applications

• Factory automation and process control systems

• Space‑constrained control cabinets requiring modular I/O

• PROFINET networks with IRT and isochronous mode requirements

• Legacy system maintenance (spare part for existing installations)

Technical Specifications:

Memory:

Performance:

CPU Blocks:

Interfaces:

Power Supply:

Physical & Environmental:

System Compatibility:

• Siemens SIMATIC ET 200SP distributed I/O system

• ET 200SP I/O modules (digital, analog, safety, technology)

• ET 200SP BusAdapters (required for ports 1 and 2)

• SIMATIC S7‑1500, S7‑1200, S7‑300, S7‑400 controllers (via PROFINET)

• TIA Portal engineering framework (V17 for FW V2.9 / V13 SP1 Update 4 for FW V1.8 or higher)

• PROFINET networks with IRT and isochronous mode

Typical System Architecture:
24V DC Power Supply
↓
6ES7510-1DJ01-0AB0 CPU 1510SP-1 PN (ET 200SP form factor)
│
├── 1st Interface: PROFINET IRT with 3‑port switch
│ ├── Port 1: Onboard (requires BusAdapter)
│ ├── Port 2: Via BusAdapter (RJ45 or FC)
│ └── Port 3: Via BusAdapter (RJ45 or FC)
│
├── SIMATIC Memory Card (required, not included)
├── ET 200SP I/O Modules (digital, analog, safety, technology)
│
↓
PROFINET Network (IO Controller / I‑Device / Distributed Intelligence)

Related Products:

• 6ES7510-1DK03-0AB0 – Successor CPU 1510SP-1 PN (200 KB program / 1 MB data, 25 ns)

• 6ES7193-6AR00-0AA0 – BusAdapter BA 2xRJ45 (required for ports 1 and 2)

• 6ES7193-6AF00-0AA0 – BusAdapter BA 2xFC (FastConnect, copper)

• 6ES7954-8LC03-0AA0 – 4 MB SIMATIC Memory Card (required for operation)

• 6ES7954-8LE03-0AA0 – 12 MB SIMATIC Memory Card

• 6ES7954-8LF03-0AA0 – 24 MB SIMATIC Memory Card

• 6ES7954-8LL03-0AA0 – 256 MB SIMATIC Memory Card
