6ES7511-1AK02-0AB0 CPU 1511-1 PN 150KB 60ns PROFINET | Siemens

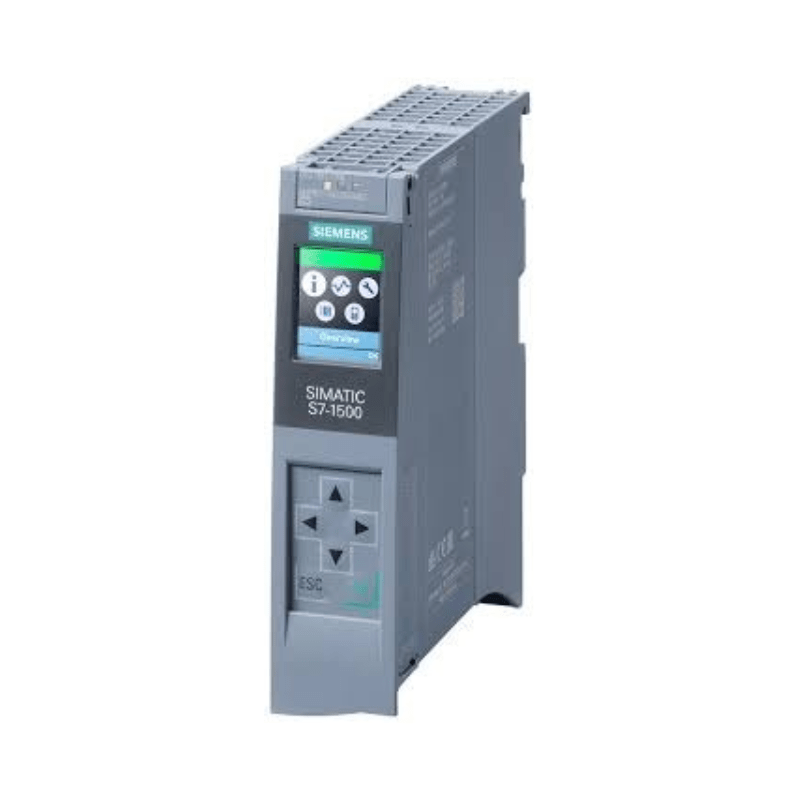

The Original New Siemens 6ES7511-1AK02-0AB0 SIMATIC S7-1500 CPU 1511-1 PN is a central processing unit designed for medium-scale automation applications requiring balanced performance and connectivity. Featuring 150 KB work memory for program and 1 MB for data, this CPU delivers 60 ns bit-processing speed and a PROFINET IRT interface with integrated 2-port switch. As part of the S7-1500 Advanced Controller family, it sets new standards in system performance and usability. The CPU can be used as a PROFINET IO controller or as a distributed intelligent device (PROFINET intelligent device). A SIMATIC Memory Card is required for operation.

⚠️ Important Product Status Note:

This product has been officially discontinued by Siemens as of May 1, 2024 and will be available only in limited quantities until the final discontinuation date of October 1, 2025. The recommended replacement is the CPU 1511-1 PN (6ES7511-1AL03-0AB0) which offers doubled memory and improved performance. For new designs, customers are encouraged to consider the replacement model.

Core Engineering Highlights:
150 KB program work memory / 1 MB data work memory | 60 ns bit-processing speed | PROFINET IRT with 2-port switch | 3.45 cm display with 8 keys + 2 mode buttons | 24V DC | 0.7A current consumption (0.95A max) | 5.7W power loss | IP20 | –25°C to +60°C horizontal operation | SIMATIC Memory Card required

Key Features:

• Original New Siemens 6ES7511-1AK02-0AB0 CPU

• 150 KB work memory for program and 1 MB for data

• 60 ns bit-performance for fast program execution

• PROFINET IRT interface with integrated 2-port switch for real-time communication

• 3.45 cm graphical display with 8 function keys and 2 mode buttons

• Integrated I&M data support (I&M0 to I&M3)

• Isochronous mode support for distributed and central applications with minimum OB 6x cycle of 625 µs (distributed) and 1 ms (central)

• Supports up to 32 Gbyte load memory via SIMATIC Memory Card

• Up to 4,000 blocks (OB, FB, FC, DB) and UDTs

• 100 free cycle OBs, 20 time alarm OBs, 20 cyclic interrupt OBs

• Integrated PID controller functions: PID_Compact (with optimization), PID_3Step (for valves), PID-Temp (for temperature)

• High-speed counter functions for counting and measuring

• Reverse polarity protection on power supply

• Maintenance-free backup (no battery required)

• TIA Portal configurable from version V17 (FW V2.9); with older versions configurable as 6ES7511-1AK01-0AB0

• Suitable as PROFINET IO controller or distributed intelligent device (PROFINET intelligent device)

Applications:

• Medium-scale machine automation and control

• Production line control and monitoring

• Material handling and conveyor systems

• Packaging machinery automation

• Process control applications with moderate I/O requirements

• Distributed I/O architectures with PROFINET IRT

• OEM equipment requiring high-performance control

• Applications not requiring continuous production technology with high processing speed and response requirements

Technical Specifications:

Memory:

Performance:

CPU Blocks:

Power Supply:

Interfaces:

Display & Controls:

Physical & Environmental:

Certifications:

• CE

• UL

• CSA

• ATEX gas-ex-protection, Cat. 3G

• FM

• RCM

• KC

System Compatibility:

• Siemens SIMATIC S7-1500 series architecture

• TIA Portal engineering framework (STEP 7 V17 or higher for FW V2.9; V15 for FW V2.5)

• PROFINET IO devices and controllers

• ET 200MP I/O modules

• ET 200SP distributed I/O systems

• SINAMICS drives via PROFINET

• SIMATIC Memory Cards (required for operation)

Typical System Architecture:
24V DC Power Supply
↓
6ES7511-1AK02-0AB0 CPU 1511-1 PN
│
├── PROFINET IRT Interface (2-port switch)
│ ├── ET 200MP I/O Modules (central)
│ ├── ET 200SP Distributed I/O (remote)
│ └── SINAMICS Drives
│
├── 3.45 cm Display with 8 Keys + 2 Mode Buttons
│
└── SIMATIC Memory Card (required; supports up to 32 GB)
↓
TIA Portal Engineering (V17 or higher)
↓
Medium-scale Automation and Control Applications

Related Products:

• 6ES7511-1AL03-0AB0 – CPU 1511-1 PN (recommended replacement, 300 KB program / 1.5 MB data)

• 6ES7954-8LC04-0AA0 – SIMATIC Memory Card 4 MB (compatible replacement for discontinued 8LC02/8LC03 variants)

• 6ES7954-8LE04-0AA0 – SIMATIC Memory Card 12 MB

• 6ES7954-8LF04-0AA0 – SIMATIC Memory Card 24 MB

• 6ES7954-8LL04-0AA0 – SIMATIC Memory Card 256 MB

• 6ES7513-1AL02-0AB0 – CPU 1513-1 PN (higher performance, 300 KB/1.5 MB)

• 6ES7515-2AM02-0AB0 – CPU 1515-2 PN (higher performance, dual PROFINET)

• 6AG1511-1AK02-2AB0 – SIPLUS S7-1500 CPU 1511-1 PN (extreme temperature version, –40°C to +70°C with conformal coating)

• 6ES7511-1FK02-0AB0 – CPU 1511F-1 PN (failsafe version)
