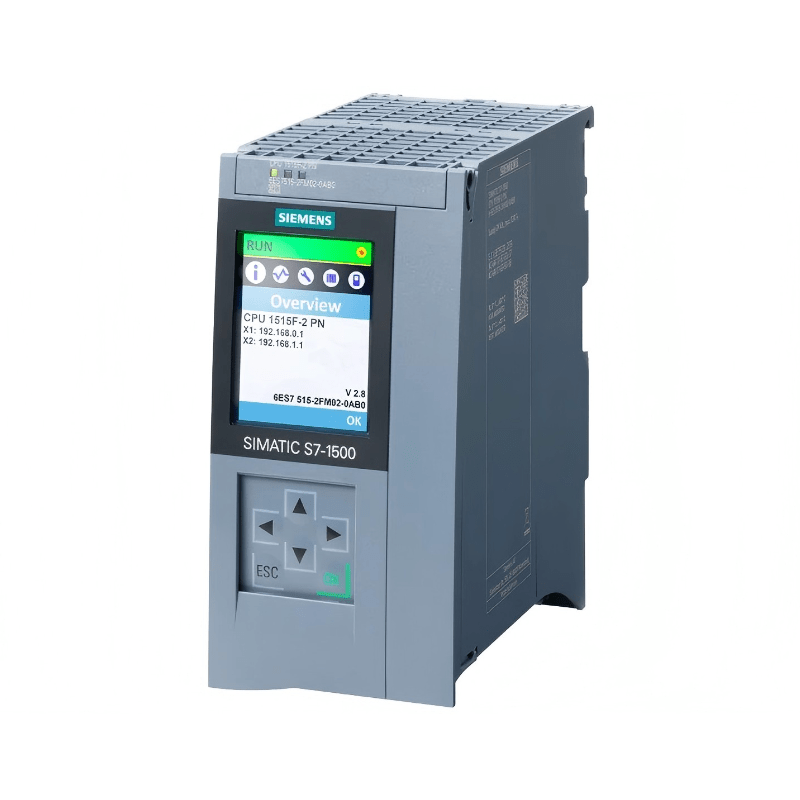

The Original New Siemens 6ES7515-2FM02-0AB0 SIMATIC S7-1500F CPU 1515F-2 PN is a high-performance failsafe central processing unit for the S7-1500 controller family. It combines standard and safety-related automation in a single CPU, supporting safety applications up to SIL 3 (IEC 61508) and PLe (ISO 13849-1). The CPU features 750 KB of work memory for program and 3 MB for data, with a 30 ns bit performance for fast processing. It includes a PROFINET IRT interface with a 2-port switch and a second PROFINET RT interface for network separation. A SIMATIC Memory Card is required for operation.
Core Engineering Highlights:
Failsafe CPU (SIL 3 / PLe) | 750 KB program / 3 MB data work memory | 30 ns bit performance | PROFINET IRT with 2‑port switch | 2nd PROFINET RT interface | 2‑port switch for linear topology | Isochronous mode support | Display with 6.1 cm diagonal | 24V DC | SIMATIC Memory Card required (up to 32 GB)
Key Features:
-
Original New Siemens 6ES7515-2FM02-0AB0 CPU
-
Failsafe CPU for standard and safety-related automation — SIL 3 (IEC 61508) and PLe (ISO 13849-1) compliant
-
30 ns bit processing time — 36 ns for word operations, 48 ns for fixed point arithmetic, 192 ns for floating point arithmetic
-
PROFINET IRT interface with 2‑port switch for real‑time communication
-
Additional PROFINET RT interface with separate IP address for network separation
-
Configuration control via dataset — flexible station configuration
Product Status:
Spare part — This product has been discontinued and is available as a spare part for maintaining existing systems. A functionally compatible successor is available: 6ES7515-2FN03-0AB0. For new installations, the successor is recommended. The 6ES7515-2FM02-0AB0 is spare part compatible with the previous version 6ES7515-2FM01-0AB0.
Technical Specifications:
| Attribute | Specification |
|---|---|
| Catalog Number | 6ES7515-2FM02-0AB0 |
| Product Type Designation | CPU 1515F-2 PN |
| Product Family | SIMATIC S7-1500F |
| Product Status | Spare part (successor: 6ES7515-2FN03-0AB0) |
| HW Functional Status | FS01 |
| Firmware Version | V1.8 / V2.9 |
Memory:
| Attribute | Specification |
|---|---|
| Work Memory (Program) | 750 KB |
| Work Memory (Data) | 3 MB |
| Load Memory (SIMATIC Memory Card, max.) | 32 GB |
| SIMATIC Memory Card Required | Yes |
| Number of Slots | 1 |
CPU Processing Times:
| Attribute | Specification |
|---|---|
| Bit Operations (typ.) | 30 ns |
| Word Operations (typ.) | 36 ns |
| Fixed Point Arithmetic (typ.) | 48 ns |
| Floating Point Arithmetic (typ.) | 192 ns |
CPU Blocks:
| Attribute | Specification |
|---|---|
| Number of Elements (Total) | 8,000 (OB, FB, FC, DB, UDT) |
| DB (max.) | 3 MB |
| FB (max.) | 3 MB |
| FC (max.) | 3 MB |
| OB (max.) | 3 MB |
Interfaces:
| Attribute | Specification |
|---|---|
| 1st Interface | PROFINET IRT with 2‑port switch (RJ45) |
| 2nd Interface | PROFINET RT (RJ45) |
| PROFINET Ports | 3 (1 on 1st interface, 2 on 2nd interface) |
Safety:
| Attribute | Specification |
|---|---|
| Safety Integrity | SIL 3 (IEC 61508) |
| Performance Level | PLe (ISO 13849-1) |
Display & Control:
| Attribute | Specification |
|---|---|
| Display Diagonal | 6.1 cm |
| Number of Keys | 8 |
| Mode Buttons | 2 |
| Mode Switch | 1 |
Power Supply:
| Attribute | Specification |
|---|---|
| Rated Supply Voltage | 24V DC |
| Permissible Range | 19.2–28.8V DC |
| Reverse Polarity Protection | Yes |
| Mains Buffering | 5 ms |
| Current Consumption (Rated) | 0.8 A |
| Current Consumption (Max) | 1.1 A |
| Inrush Current (Max) | 2.4 A |
Power:
| Attribute | Specification |
|---|---|
| Backplane Bus Infeed Power | 12 W |
| Backplane Bus Consumption | 6.2 W |
| Power Loss (Typ.) | 6.3 W |
Engineering & Configuration:
| Attribute | Specification |
|---|---|
| TIA Portal (FW V2.9) | V17 or higher |
| TIA Portal (FW V2.8) | V16 or higher |
| Configuration Control | Via dataset |
| I&M Data | I&M0 to I&M3 |
| Isochronous Mode | Yes (distributed and central) |
Physical & Environmental:
| Attribute | Specification |
|---|---|
| Enclosure Type | IP20 |
| Weight | Approx. 0.58 kg |
| Operating Temperature | 0°C to 60°C |
| Certifications | CE, cULus |
| EAN | 4047623410485 |
System Compatibility:
-
Siemens SIMATIC S7-1500 and S7-1500F controller architecture
-
ET 200MP distributed I/O system
-
PROFINET IO controller and I‑Device operation
-
TIA Portal engineering framework (V17 or higher for FW V2.9)
-
SIMATIC Memory Card (required accessory)
-
Suitable for safety-related applications up to SIL 3 / PLe
Typical System Architecture:
24V DC Power Supply
↓
6ES7515-2FM02-0AB0 CPU 1515F-2 PN
│
├── 1st Interface: PROFINET IRT with 2‑port switch → Real‑time I/O / Drives
├── 2nd Interface: PROFINET RT → Network Separation / HMI / SCADA
├── Integrated Display (6.1 cm) → Local Diagnostics / Operation
├── SIMATIC Memory Card (up to 32 GB) → Program / Data Storage
│
↓
ET 200MP I/O Modules (Digital, Analog, Safety, Technology)
↓
TIA Portal Engineering (STEP 7 Professional)
Related Products:
-
6ES7515-2FN03-0AB0 – Successor CPU 1515F-2 PN (active product)
-
6ES7954-8LC03-0AA0 – 4 MB SIMATIC Memory Card (required accessory)
-
6ES7954-8LE03-0AA0 – 12 MB SIMATIC Memory Card
-
6ES7954-8LF03-0AA0 – 24 MB SIMATIC Memory Card
-
6ES7954-8LL03-0AA0 – 256 MB SIMATIC Memory Card
-
6ES7954-8LP02-0AA0 – 2 GB SIMATIC Memory Card
-
6ES7521-1BH00-0AA0 – DI 16x24V DC (digital input module)
-
6ES7522-1BH10-0AA0 – DQ 16x24V DC/0.5A BA (digital output module)
-
6ES7531-7QD00-0AB0 – AI 4xU/I/RTD/TC ST (analog input module)
