6ES7522-1BH10-0AA0 S7-1500 DQ 16x24V DC/0.5A BA Digital Output | Siemens

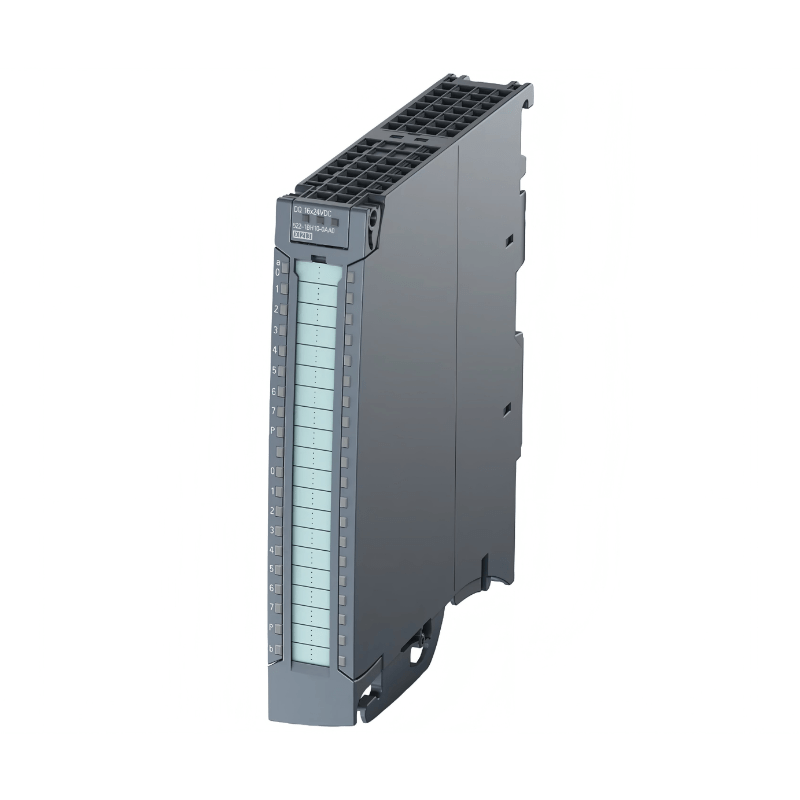

The Original New Siemens 6ES7522-1BH10-0AA0 SIMATIC S7-1500 Digital Output Module is a Basic (BA) series output module designed for controlling 24V DC loads in industrial automation systems. Part of the S7-1500 and ET 200MP I/O system family, this module provides 16 transistor outputs (current-sourcing) organized in two groups of 8 channels, delivering 0.5A per channel and 4A per group. The module supports the safety-oriented shutdown of load groups up to SIL2 (EN IEC 62061:2021) and Category 3 / PL d (EN ISO 13849-1:2015), making it suitable for applications requiring functional safety integration. Delivery includes a push-in front connector for simplified wiring.

Core Engineering Highlights:
16 digital outputs (24V DC, current-sourcing) | 0.5A per channel / 4A per group | 2 groups of 8 channels | SIL2 (EN IEC 62061:2021) | Category 3 / PL d (EN ISO 13849-1:2015) | 100 µs output delay (0→1) / 500 µs (1→0) | Short-circuit protection | 24V DC nominal supply | 25 mm width | Push-in front connector included | IP20 protection

Key Features:

• Original New Siemens 6ES7522-1BH10-0AA0 module

• 16 digital output channels (transistor, current-sourcing)

• Outputs organized in two groups of 8 channels

• 0.5A per channel output current — suitable for solenoids, relays, indicator lights, and small actuators

• 4A per group total current capacity

• Supports safety-oriented shutdown of load groups up to SIL2 (EN IEC 62061:2021)

• Complies with Category 3 / PL d (EN ISO 13849-1:2015) for functional safety integration

• Short-circuit protection with typical 1A response threshold

• Fast switching: 100 µs (0→1) / 500 µs (1→0) with resistive load

• 24V DC rated supply voltage (19.2–28.8V range) with reverse polarity protection

• 30 mA typical current consumption

• 2.2 W typical power loss

• 25 mm width for space-saving mounting on S7-1500 mounting rail

• Push-in front connector included in delivery — no separate purchase required

• I&M data support (I&M0 to I&M3) for identification and maintenance

• Supports MSO (Multiple Signal Output) for flexible signal routing

• 1,000 m shielded / 600 m unshielded maximum cable length

• IP20 protection for control cabinet installation

• Configurable via TIA Portal V13 / STEP 7 V5.5 SP3 or higher

Applications:

• Solenoid valve and actuator control in machine automation

• Conveyor and material handling systems

• Packaging machinery and assembly lines

• Indicator lamp and relay switching

• Industrial process control and factory automation

• OEM equipment requiring 24V DC digital output control

• Safety-related applications requiring SIL2 / Category 3 / PL d compliance

Technical Specifications:

Power Supply:

Digital Outputs:

Cable Length:

Safety Ratings:

Physical & Environmental:

System Compatibility:

• Siemens SIMATIC S7-1500 controllers (all variants)

• ET 200MP distributed I/O system

• SIMATIC S7-1200 controllers (via PROFINET)

• TIA Portal engineering framework (V13 or higher)

• STEP 7 V5.5 SP3 or higher

Typical System Architecture:
S7-1500 CPU (e.g., CPU 1511-1 PN) / ET 200MP Interface Module
↓
6ES7522-1BH10-0AA0 Digital Output Module (25 mm width)
│
├── Group 1 (Channels 0–7) → 4A total / 0.5A per channel
├── Group 2 (Channels 8–15) → 4A total / 0.5A per channel
│
↓
Field Devices (Solenoids, Relays, Actuators, Indicator Lights)
↓
TIA Portal Engineering (STEP 7 Professional)

Related Products:

• 6ES7522-1BL10-0AA0 – DQ 32x24V DC/0.5A BA (32-channel version)

• 6ES7522-1BH00-0AB0 – DQ 16x24V DC/0.5A HF (High Feature version with diagnostics)

• 6ES7590-1AE80-0AA0 – S7-1500 mounting rail (required for installation)

• 6ES7590-5AA00-0AA0 – Shield connector set for S7-1500 modules

• 6ES7590-5BA00-0AA0 – Shield connector set for analog modules

• 6ES7521-1BH00-0AA0 – DI 16x24V DC digital input module (complementary)

• 6ES7954-8LC03-0AA0 – SIMATIC Memory Card for S7-1500
