6ES7526-2BF00-0AB0 S7-1500 F-DQ 8x24V DC/2A PPM SIL3/PL e | Siemens

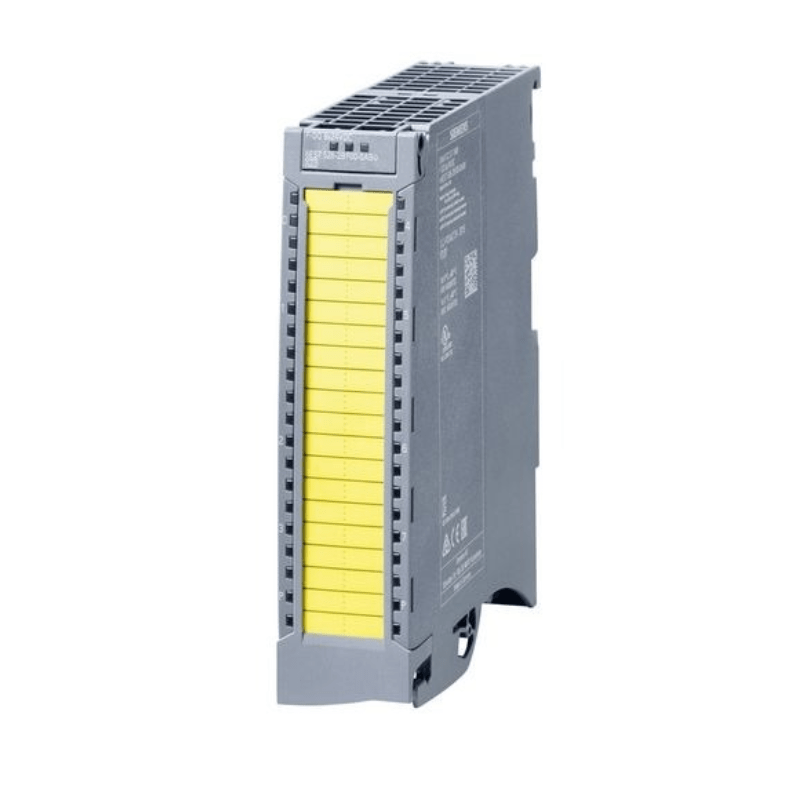

The Original New Siemens 6ES7526-2BF00-0AB0 SIMATIC S7-1500 F-DQ 8x24V DC/2A PPM is a failsafe digital output module for the S7-1500 and ET 200MP I/O systems. Part of the SIMATIC S7-1500 F-family, this 8-channel safety output module is certified up to SIL 3 (IEC 61508) and PL e (ISO 13849-1), making it suitable for safety-critical applications requiring the highest level of integrity. It supports both P-switching and M-switching (PPM) output configurations, providing flexible integration with various actuator types. The module features comprehensive diagnostics including short-circuit protection, wire break detection, and overload protection, with PROFIsafe communication for safe data exchange.

Core Engineering Highlights:
8 failsafe digital outputs | 2A per channel | PM-switching output stage | SIL 3 (IEC 61508) | PL e (ISO 13849-1) | PROFIsafe communication | 35 mm width | Short-circuit and overload protection | Wire break detection | Diagnostics and hardware interrupts | 24V DC supply

Key Features:

• Original New Siemens 6ES7526-2BF00-0AB0 module

• 8 failsafe digital outputs (24V DC, 2A per channel)

• Supports P-switching and M-switching (PPM) output configuration

• Certified safety integrity: SIL 3 (IEC 61508)

• Performance Level: PL e, Category 4 (EN ISO 13849-1)

• PROFIsafe communication protocol for failsafe data exchange

• Channel diagnostics: short-circuit protection, wire break detection, overload protection

• Short-circuit protection threshold: typ. 2.9A

• Wire break detection: typ. 8mA

• Voltage limitation on current interruption: PM switching: –24V + (–47V), PP switching: –24V

• I&M data support (I&M0 to I&M3)

• 35 mm width for S7-1500 mounting rail

• 24V DC power supply with reverse polarity protection

• Configurable in RUN (reparameterization)

• Firmware upgradeable

• Engineering via TIA Portal V13 SP1 with HSP0086

• Address space: 6 bytes (S7-1500F) / 5 bytes (S7-300/400F CPU)

Important Protection Note:
To protect the F-module, always install an external fuse for the load circuit with the following specification: Circuit-breaker 24V DC/16A, tripping characteristic type B.

Applications:

• Emergency stop and safety shutdown circuits (SIL 3 / PL e rated)

• Safety door monitoring and interlock systems with failsafe outputs

• Light curtain and safety sensor interfaces

• Safety contactor and brake control

• Machine safety and personnel protection systems

• Process safety applications requiring SIL 3 integrity

• Distributed safety I/O with S7-1500F and ET 200MP systems

• Multi-channel safety actuator control with 2A per channel capability

Technical Specifications:

Power Supply:

Current & Power:

Digital Outputs:

Address Space:

Physical & Environmental:

Engineering & Configuration:

System Compatibility:

• Siemens SIMATIC S7-1500F controllers (failsafe CPUs)

• ET 200MP distributed I/O system

• PROFIsafe communication protocol

• TIA Portal engineering framework (V13 SP1 or higher)

• S7-300F / S7-400F controllers (address space: 5 bytes)

• Suitable for both S7-1500F and ET 200MP systems

Typical System Architecture:
S7-1500F CPU (e.g., CPU 1515F-2 PN)
↓
PROFIsafe Communication
↓
6ES7526-2BF00-0AB0 F-DQ 8x24V DC/2A PPM Module (35 mm width)
│
├── External Fuse Protection: 24V DC/16A, Type B circuit-breaker (required)
├── 8 Failsafe Output Channels (2A each, PM-switching)
│ ├── Channel 1 → Safety Actuator 1
│ ├── Channel 2 → Safety Actuator 2
│ ├── ...
│ └── Channel 8 → Safety Actuator 8
│
↓
Safety Actuators (Contactors, Brakes, Valves, Indicator Lamps)
↓
SIL 3 / PL e Safety Functions

Related Products:

• 6ES7526-1BH00-0AB0 – F-DI 16x24V DC (failsafe input counterpart)

• 6ES7590-1AE80-0AA0 – S7-1500 mounting rail (required for installation)

• 6ES7590-5AA00-0AA0 – Shield connector set for S7-1500 modules

• 6AG1526-2BF00-2AB0 – SIPLUS S7-1500 F-DO 8x24VDC/2A (conformal coated, extended temperature)

• 6ES7954-8LC03-0AA0 – 4MB SIMATIC Memory Card for S7-1500

• 6ES7954-8LE03-0AA0 – 12MB SIMATIC Memory Card
