6GK5005-0BA00-1AB2 SCALANCE XB005 5-Port Unmanaged Switch | Siemens

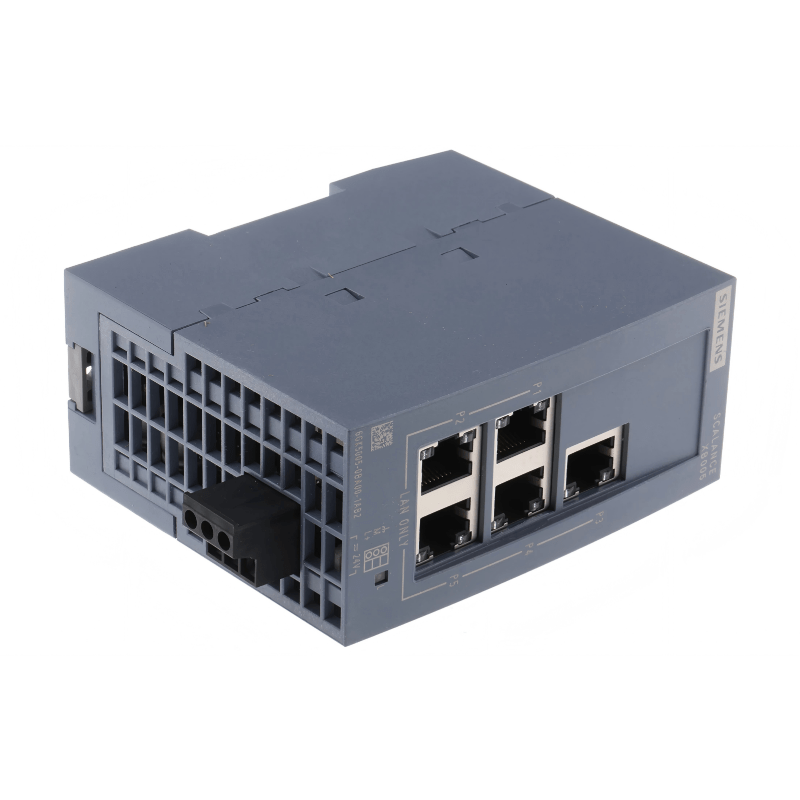

The Original New Siemens 6GK5005-0BA00-1AB2 SCALANCE XB005 is an entry-level unmanaged Industrial Ethernet switch designed for setting up small star and line topologies in factory automation and machine control networks. Featuring 5x 10/100 Mbit/s RJ45 ports, LED diagnostics, and a compact IP20 housing, this switch provides plug-and-play connectivity without requiring any configuration. DIN rail or wall mounting options enable flexible installation in space-constrained control cabinets.

Core Engineering Highlights:
5x 10/100 Mbit/s RJ45 ports | Unmanaged plug-and-play operation | LED diagnostics | IP20 protection | 24V AC/DC power supply (19.2–28.8V) | 1.68W power loss | 45mm width | DIN rail or wall mount | –10°C to +60°C operating temperature | PROFINET Conformance Class A

Key Features:

• Original New Siemens 6GK5005-0BA00-1AB2 switch

• 5x 10/100 Mbit/s twisted pair ports with RJ45 sockets

• Unmanaged — no configuration required, plug-and-play installation

• Supports small star and line topologies for flexible network design

• LED diagnostics for quick status indication and troubleshooting

• IP20 protection for control cabinet installation

• 24V AC/DC power supply (19.2–28.8V range)

• 3‑pole terminal block for power connection

• 45 mm width for space‑saving DIN rail or wall mounting

• 0.165 kg lightweight design

• PROFINET Conformance Class A

• CE, cULus, KC, RCM, ATEX, IECEx, FM approvals

• Manual available as a download

Applications:

• Connecting PLCs, HMIs, drives, and other Ethernet devices in small automation networks

• Factory automation and machine control systems

• Conveyor and material handling equipment

• Packaging machinery

• Building automation networks

• Industrial Ethernet network expansion

Technical Specifications:

Environmental Specifications:

Product Functions & Protocols:

Approvals & Certifications:

System Compatibility:

• Siemens SIMATIC S7-1200, S7-1500, S7-300, S7-400 controllers

• SIMATIC ET 200SP, ET 200MP distributed I/O systems

• SINAMICS drives

• SCALANCE network components

• All standard industrial Ethernet devices (10/100 Mbit/s)

Typical System Architecture:
Industrial Ethernet Network (10/100 Mbit/s)
↓
6GK5005-0BA00-1AB2 SCALANCE XB005 Unmanaged Switch
│
├── 5x RJ45 Ports — connects up to 5 devices
├── Small star or line topology
├── Plug‑and‑play, no configuration required
│
↓
Connected Devices (PLC, HMI, Drive, I/O, Other Ethernet Devices)
