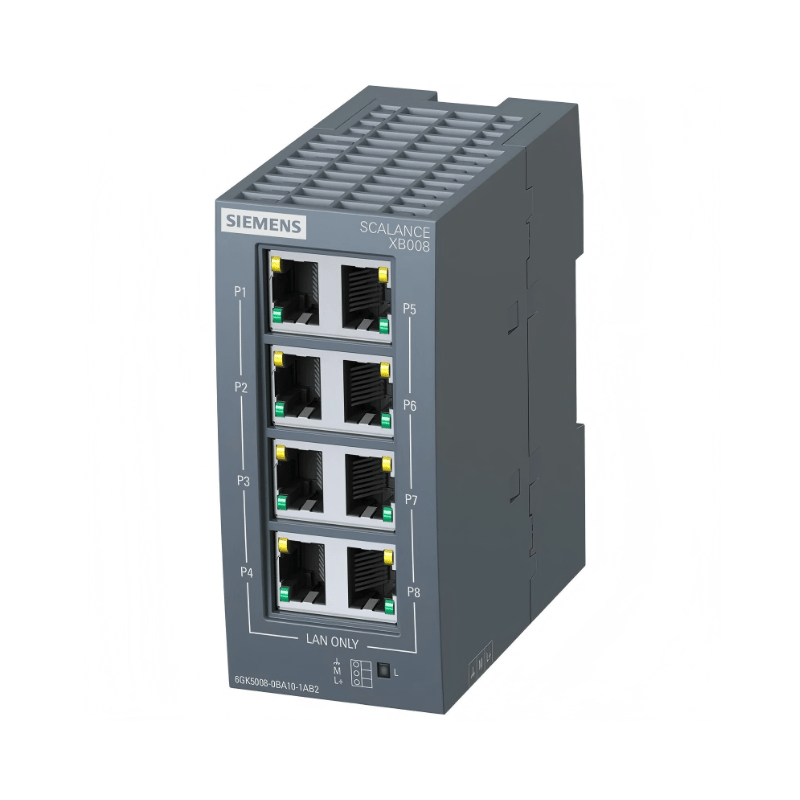

6GK5008-0BA10-1AB2 SCALANCE XB008 8-Port Unmanaged Switch | Siemens

The Original New Siemens 6GK5008-0BA10-1AB2 SCALANCE XB008 is an unmanaged industrial Ethernet switch for setting up small star and line topologies in factory automation and machine control networks. Featuring 8x 10/100 Mbit/s RJ45 ports, LED diagnostics, and a compact IP20 housing, this switch provides plug‑and‑play connectivity without requiring any configuration. DIN rail or wall mounting options enable flexible installation in space‑constrained control cabinets.

Core Engineering Highlights:
8x 10/100 Mbit/s RJ45 ports | Unmanaged plug‑and‑play operation | LED diagnostics | IP20 protection | 24V AC/DC power supply (19.2–28.8V)| 45mm width | 180g weight| –10°C to +60°C operating temperature| 214 years MTBF| 1024 MAC addresses| UL 60950‑1, CSA C22.2 No. 60950‑1

Key Features:

• Original New Siemens 6GK5008-0BA10-1AB2 switch

• 8x 10/100 Mbit/s twisted pair ports with RJ45 sockets

• Unmanaged — no configuration required, plug‑and‑play installation

• Supports small star and line topologies for flexible network design

• LED diagnostics for quick status indication and troubleshooting

• IP20 protection for control cabinet installation

• 24V AC/DC power supply (19.2–28.8V AC/DC)

• 45mm width for space‑saving DIN rail or wall mounting

• 180g lightweight design

• 214 years MTBF (EN/IEC 61709; 40°C) for high reliability

• 1024 learnable MAC addresses

• Forwarding of PRP frames (Parallel Redundancy Protocol) supported

• CE, UL 60950‑1, CSA C22.2 No. 60950‑1 approved

• Manual available as a download

Applications:

• Connecting PLCs, HMIs, drives, and other Ethernet devices in small automation networks

• Factory automation and machine control systems

• Conveyor and material handling equipment

• Packaging machinery

• Building automation networks

• Industrial Ethernet network expansion

Technical Specifications:

Environmental Specifications:

System Compatibility:

• Siemens SIMATIC S7‑1200, S7‑1500, S7‑300, S7‑400 controllers

• SIMATIC ET 200SP, ET 200MP distributed I/O systems

• SINAMICS drives

• SCALANCE network components

• All standard industrial Ethernet devices (10/100 Mbit/s)

• PRP‑enabled networks for parallel redundancy

Typical System Architecture:
Industrial Ethernet Network (10/100 Mbit/s)
↓
6GK5008-0BA10-1AB2 SCALANCE XB008 Unmanaged Switch
│
├── 8x RJ45 Ports — connects up to 8 devices
├── Small star or line topology
├── Plug‑and‑play, no configuration required
│
↓
Connected Devices (PLC, HMI, Drive, I/O, Other Ethernet Devices)

Related Products:

• 6GK5005-0BA00-1AB2 – SCALANCE XB005, 5‑port version

• 6GK5008-0BA00-1AB2 – SCALANCE XB008, previous version

• 6GK5008-0GA00-1AB2 – SCALANCE XB008G, Gigabit version

• 6GK5008-0BA10-1AB2 – SCALANCE XB008 (current model)
