6GK7243-1BX30-0XE0 CP 1243-1 Telecontrol Processor for S7-1200 | Siemens

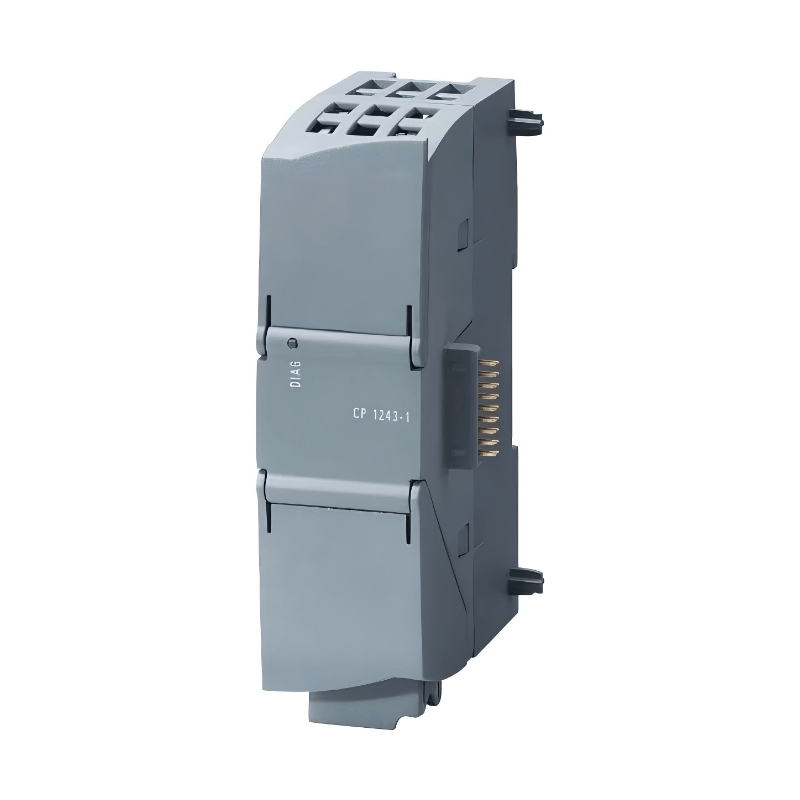

The Original New Siemens 6GK7243-1BX30-0XE0 SIMATIC CP 1243-1 Communications Processor is a powerful telecontrol and security module for the S7-1200 controller. It provides an additional, dedicated Ethernet interface for network separation and enables secure connection to control centers via telecontrol protocols. With integrated firewall and VPN (IPsec) security, it protects S7-1200 stations and downstream networks against unauthorized access and encrypts data transfers against manipulation and espionage.

Core Engineering Highlights:
10/100 Mbps additional Ethernet interface | 1x RJ45 port | Telecontrol protocols: DNP3, IEC 60870‑5‑101/104, TeleControl Basic | Integrated Stateful Inspection Firewall and IPsec VPN | 5V DC from S7-1200 backplane bus | 250 mA current consumption | 1.25 W power loss | 30 mm width | 0.122 kg | –20°C to +70°C operating temperature | IP20 protection

Key Features:

• Original New Siemens 6GK7243-1BX30-0XE0 communications processor

• Provides an additional Ethernet interface for the SIMATIC S7-1200 — connects to control centers via telecontrol protocols

• Supports telecontrol protocols: DNP3, IEC 60870‑5‑101/104, and TeleControl Basic

• Integrated security functions: Stateful Inspection Firewall and IPsec VPN tunnels for secure communication

• Up to 500 data points per station and 64,000 events buffering in case of connection loss

• 3 CP 1243-1 modules can be used per S7-1200 CPU

• Supports up to 3 stations in send direction and 15 in receive direction with TeleControl Server Basic

• Remote firmware update capability and online diagnostics via STEP 7

• Configuration with STEP 7 Basic/Professional (TIA Portal)

• DIN rail or wall mounting

• Supported communication types: S7 communication, Open User Communication (OUC), secure OUC, S7 routing, email client (SMTP), SNMP

• 24V DC power supply via S7-1200 backplane bus

• IP20 protection for control cabinet installation

Applications:

• Remote monitoring and control of distributed substations and utilities

• Secure connection of S7-1200 controllers to SCADA systems (TeleControl Server Basic, WinCC, PCS 7)

• Water/wastewater telecontrol applications

• Oil and gas pipeline monitoring

• Power distribution and energy management systems

• Secure remote access to automation networks via VPN tunnels

Technical Specifications:

Protocols & Functions:

Physical & Environmental:

Configuration & Engineering:

System Compatibility:

• Siemens SIMATIC S7-1200 controllers (all variants)

• TeleControl Server Basic, WinCC, PCS 7 (SCADA systems)

• Siemens SIMATIC NET products

• TIA Portal engineering framework

Typical System Architecture:
S7-1200 CPU
↓
6GK7243-1BX30-0XE0 CP 1243-1 Communications Processor
│
├── Additional Ethernet Interface → Network Separation / Control Center Connection
├── Telecontrol Protocols → DNP3 / IEC 60870 / TeleControl Basic
├── Integrated Firewall → Access Control / Protection
├── IPsec VPN → Encrypted Data Transmission
│
↓
TeleControl Server Basic / SCADA System (WinCC / PCS 7)
↓
Remote Control Center

Related Products:

• 6AG1243-1BX30-2AX0 – SIPLUS S7-1200 CP 1243-1 (conformal coated, –40°C to +70°C)

• 6GK7243-1PX30-0XE0 – CP 1243-1 IEC (IEC 60870‑5‑104 only)

• 6GK7243-7KX30-0XE0 – CP 1243-7 LTE (cellular telecontrol)

• 6GK7243-8RX30-0XE0 – CP 1243-8 IRC (SINAUT telecontrol)

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Siemens, SIMATIC, SIMATIC NET, and TIA Portal are trademarks of Siemens AG.
