6SL3055-0AA00-5BA3 SINAMICS S120 SMC20 Sensor Module EnDat/SinCos | Siemens

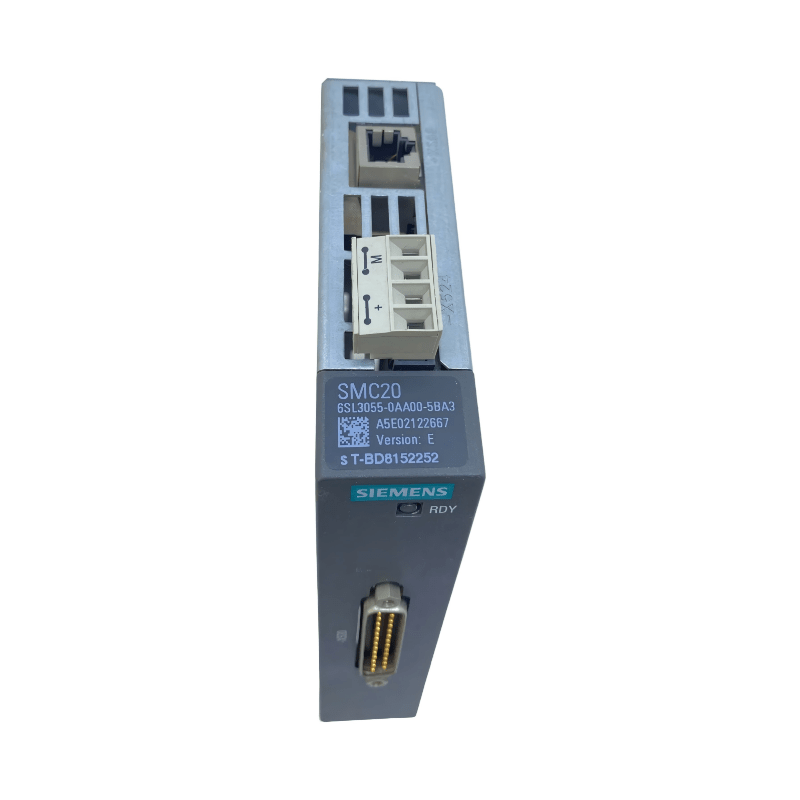

The Original New Siemens 6SL3055-0AA00-5BA3 SINAMICS S120 SMC20 Sensor Module is a cabinet-mounted encoder evaluation module for the SINAMICS S120 modular drive system. It converts signals from incremental encoders (Sin/Cos 1Vpp) and absolute encoders (EnDat 2.1, SSI with incremental signals) into DRIVE-CLiQ format for transmission to the Control Unit. Motor temperature monitoring via KTY84-130, Pt1000, or PTC thermistors is integrated. The module supports a maximum encoder frequency of 500 kHz with 14-bit interpolation (16384×) and SSI baud rates up to 1000 kBaud. 30 mm width. This version is supplied without a DRIVE-CLiQ cable.

Core Engineering Highlights:
Incremental encoder Sin/Cos 1Vpp evaluation | Absolute encoder EnDat 2.1 support | SSI encoder with Sin/Cos 1Vpp incremental signals (FW V2.4+) | 500 kHz max encoder frequency | 16384× (14-bit) signal interpolation | 24V DC, max 0.2A (without encoder) | 5V encoder supply, max 0.35A | 100m max cable length | DRIVE-CLiQ interface | 30mm width | IP20

Key Features:

• Original New Siemens 6SL3055-0AA00-5BA3 module

• Cabinet-mounted sensor module for SINAMICS S120 drive systems

• Evaluates incremental encoders with Sin/Cos 1Vpp signals

• Evaluates absolute encoders with EnDat 2.1 protocol

• Supports SSI encoders with incremental signals Sin/Cos 1Vpp (from firmware V2.4)

• Motor temperature monitoring via KTY84-130, Pt1000, or PTC thermistors

• Maximum encoder frequency: 500 kHz

• Signal subdivision (interpolation): up to 16384× (14-bit)

• SSI baud rate: 100–1000 kBaud

• Encoder supply voltage: 5V DC, max current 0.35A

• Maximum cable length to encoder: 100m

• DRIVE-CLiQ interface for communication with Control Unit

• 24V DC electronics power supply via power connector

• Multi-color LED status indicator

• IP20 / UL Open Type enclosure

• DIN rail mounting (TH 35 according to EN 60715 / IEC 60715)

• 30mm width for space-efficient cabinet installation

• Net weight: 0.45 kg

• Active product lifecycle (PM300)

• Delivered without DRIVE-CLiQ cable — order separately

Applications:

• Encoder signal evaluation for motors without DRIVE-CLiQ interface

• Connection of external encoders to SINAMICS S120 drive systems

• High-precision speed and position feedback for servo drives

• Motor temperature monitoring for overload protection

• Machine tools, robotics, and handling systems

• Packaging and printing machinery

• OEM machine building and retrofit projects

Technical Specifications:

Power Supply:

Encoder Evaluation:

Product Status:
Active product. Delivered without DRIVE-CLiQ cable — order separately. This is the successor to 6SL3055-0AA00-5BA2.

System Compatibility:

• Siemens SINAMICS S120 modular drive system

• SINAMICS S120 Control Units (CU320-2, etc.) via DRIVE-CLiQ

• Motors without DRIVE-CLiQ interface

• External encoders with Sin/Cos 1Vpp or EnDat 2.1 interface

• DRIVE-CLiQ cables (order separately, various lengths)

• TIA Portal engineering framework (Startdrive)

Typical System Architecture:
SINAMICS S120 Control Unit (e.g., CU320-2)
↓
DRIVE-CLiQ Cable (ordered separately)
↓
6SL3055-0AA00-5BA3 SMC20 Sensor Module
│
├── Encoder Interface (SUB-D) → Motor Encoder (Sin/Cos 1Vpp / EnDat 2.1)
├── Temperature Sensor → Motor Temperature (KTY84-130 / Pt1000 / PTC)
├── 24V DC Power Supply → Electronics Supply
│
↓
Motor (without DRIVE-CLiQ interface)

Related Products:

• 6SL3060-4AF00-0AA0 – DRIVE-CLiQ cable, various lengths (order separately)

• 6SL3055-0AA00-5CA2 – SMC30 Sensor Module (HTL/TTL encoder evaluation)

• 6SL3055-0AA00-5BA2 – SMC20 Sensor Module (previous version)

• 6SL3055-0AA00-5AA3 – SMC10 Sensor Module

• 6SL3055-0AA00-5KA3 – SMC40 Sensor Module

• SINAMICS S120 Control Units – CU320-2 PN, etc.
