6SL3120-1TE13-0AD0 SINAMICS S120 Single Motor Module 3A Booksize | Siemens

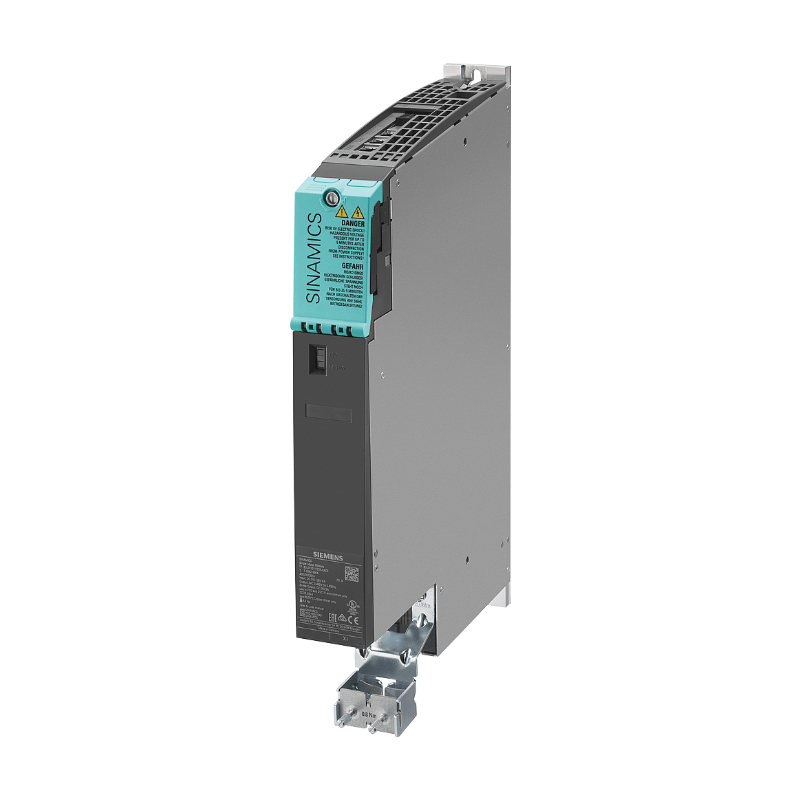

The Original New Siemens 6SL3120-1TE13-0AD0 SINAMICS S120 Single Motor Module is a high-performance single-axis drive module for the SINAMICS S120 modular drive system. Part of the Booksize D-Type family, this module converts a DC 600V input to a 3AC 400V output at 3A, enabling precise control of synchronous and asynchronous motors in demanding motion control applications. Featuring internal air cooling, optimized pulse patterns, support for extended Safety Integrated functions, and a DRIVE-CLiQ interface, it delivers reliable performance for machine tools, robotics, packaging machinery, and high-dynamic servo applications.

Core Engineering Highlights:
DC 600V input (510–720V DC link) | 3AC 400V output | 3.0A rated output current | 1.6kW rated power (N) / 1.4kW (H) | 9.0A maximum current | 4.00 kHz rated pulse frequency | Booksize D-Type form factor | Internal air cooling | Optimized pulse patterns | Extended Safety Integrated functions | DRIVE-CLiQ interface | IP20 protection | 50mm width

Key Features:

• Original New Siemens 6SL3120-1TE13-0AD0 module

• Single-axis motor output for high-precision motion control

• Input: DC 600V (DC link voltage range 510–720V)

• Output: 3AC 400V, 3.0A rated output current

• Rated power: 1.6kW (based on N) / 1.4kW (based on H)

• Base load current (IH): 2.6A

• S6 duty (40%) current: 4.0A

• Maximum current (Imax): 9.0A

• Booksize D-Type form factor for space-efficient cabinet installation

• Internal air cooling with optimized pulse patterns for reduced motor losses

• Extended Safety Integrated functions — SIL 2 (IEC 61508), PL d (EN ISO 13849-1)

• DRIVE-CLiQ interface for seamless integration with SINAMICS S120 control units

• Rated pulse frequency: 4.00 kHz

• Output frequency: up to 650 Hz for servo control

• DC link capacitance: 110 µF

• 24V electronics supply: DC 24V (-15% / +20%)

• 24V current demand: 0.75A max

• DC link current (Id): 3.6A

• IP20 / UL Open Type protection for control cabinet installation

• Motor cable length: up to 75m (unshielded) / 50m (shielded)

• Ambient temperature: 0°C to +40°C

• Max. installation altitude: 1,000m (without derating)

• Dimensions (H x W x D): 380 x 50 x 270 mm

• Sound pressure level: 60 dB (at 1m)

• Weight: approx. 4.6 kg

• Active product lifecycle — successor to 6SL3120-1TE13-0AA4

Applications:

• Single-axis motion control in machine tools (CNC, milling, turning)

• High-performance robotics and handling systems

• Packaging and printing machinery

• Textile and converting equipment

• High-dynamic servo applications requiring up to 650 Hz output frequency

• Safety-critical applications requiring SIL 2 / PL d compliance

• OEM machine building and retrofit projects

Technical Specifications:

Accessories (order separately):

• 6SL3162-2MA00-0AC0 – Power connector (X1) with screw-type terminal, 1.5–6 mm², for 3–30A Motor Modules

• 6SL3162-2MB00-0AC0 – Power connector (X1) with push-in connection, spring-loaded terminals, 1.5–6 mm²

• 6SL3162-1AD00-0AA0 – Shield connection plate for 100mm width modules (45A/60A C type)

• 6SL3162-1AH01-0AA0 – Shield connection plate for 200mm width modules

• 6SL3162-1AH00-0AA0 – Shield connection plate for 300mm width modules

System Compatibility:

• Siemens SINAMICS S120 modular drive system

• SINAMICS S120 Control Units (CU320-2, etc.)

• DRIVE-CLiQ interface for communication with control units and other system components

• Compatible with SINAMICS S120 line modules (Basic Line Modules, Smart Line Modules, Active Line Modules)

• Suitable for controlling synchronous and asynchronous motors

• One-to-one replacement for 6SL3120-1TE13-0AA4

Typical System Architecture:
SINAMICS S120 Line Module (e.g., Active Line Module)
↓
DC Link (600V DC)
↓
6SL3120-1TE13-0AD0 Single Motor Module (Booksize D-Type)
│
├── 3AC 400V, 3A → Motor (Synchronous / Asynchronous)
├── DRIVE-CLiQ Interface → SINAMICS S120 Control Unit
├── Extended Safety Integrated Functions (SIL 2 / PL d)
│
↓
SINAMICS S120 Control Unit (e.g., CU320-2)

Related Products:

• 6SL3120-1TE15-0AD0 – 2 x 5A version (higher current)

• 6SL3120-1TE21-0AD0 – 2 x 9A version (higher current)

• 6SL3120-1TE21-8AD0 – 2 x 18A version (highest current)

• 6SL3162-2MA00-0AC0 – Power connector (X1) with screw-type terminal

• 6SL3162-2MB00-0AC0 – Power connector (X1) with push-in connection

• 6SL3060-4AF00-0AA0 – DRIVE-CLiQ cable (pre-assembled, various lengths)

• 6SL3055-0AA00-4BA0 – SINAMICS S120 Memory Card (CF card)
