6SL3120-2TE21-0AD0 SINAMICS S120 Double Motor Module 2x9A | Siemens

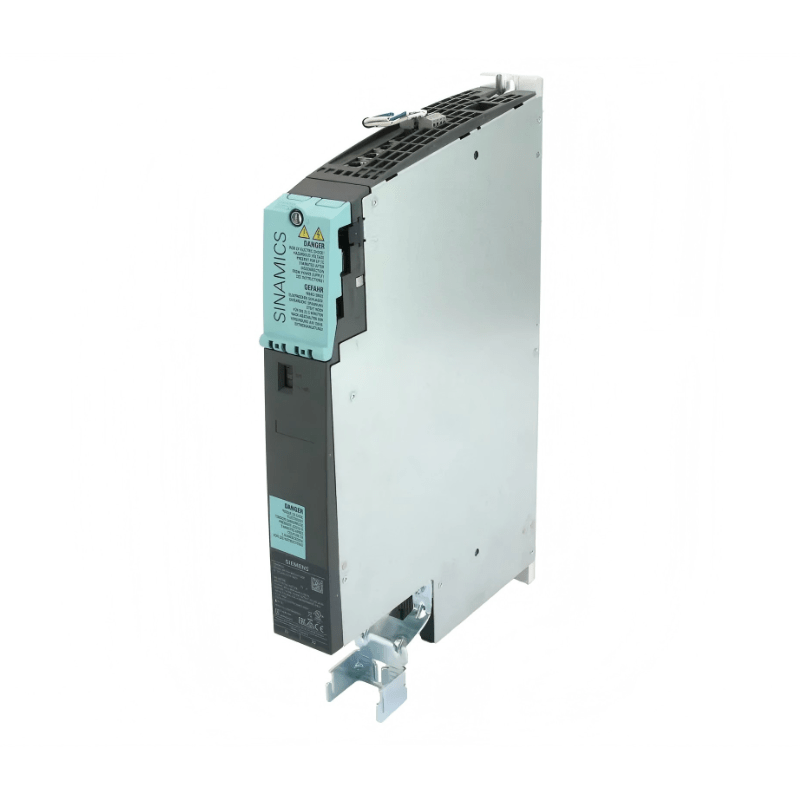

The Original New Siemens 6SL3120-2TE21-0AD0 SINAMICS S120 Double Motor Module is a high-performance dual-axis motor module designed for demanding multi-axis motion control applications in industrial automation systems. Part of the SINAMICS S120 modular drive system, this Booksize D-Type module converts a DC 600V input to dual 3AC 400V outputs at 9A per channel, enabling independent control of two synchronous or asynchronous motors in a compact footprint. Featuring internal air cooling, optimized pulse patterns, and support for extended Safety Integrated functions (SIL 2 / PL d), it delivers robust performance for high-dynamic motion control applications including machine tools, robotics, and packaging machinery.

Core Engineering Highlights:
DC 600V input (510–720V DC link) | 3AC 400V output | 2 x 9.0A rated output current | 2 x 4.8kW rated output power | Booksize D-Type form factor | Internal air cooling | Optimized pulse patterns | Extended Safety Integrated functions (SIL 2 / PL d) | DRIVE-CLiQ interface | IP20 protection | Up to 650 Hz output frequency (servo control)

Key Features:

• Original New Siemens 6SL3120-2TE21-0AD0 module

• Dual-channel motor output — independently controls two motors in a single compact module

• Input: DC 600V (DC link voltage range 510–720V)

• Output: Dual 3AC 400V, 9A per channel

• Rated power: 2 x 4.8kW (rated) / 2 x 4.1kW (base load)

• Base current per channel: 12.0A

• Maximum current per channel: 27.0A

• Booksize D-Type form factor for space-efficient cabinet installation

• Internal air cooling

• Optimized pulse patterns for reduced motor losses and improved efficiency

• Extended Safety Integrated functions — SIL 2 (IEC 61508), PL d (EN ISO 13849-1)

• DRIVE-CLiQ interface for seamless integration with SINAMICS S120 control units

• Rated pulse frequency: 4.00 kHz

• Output frequency: up to 650 Hz for servo control

• IP20 / UL Open Type protection for control cabinet installation

• Motor cable length: up to 75m (unshielded) / 50m (shielded)

• Active product lifecycle — successor to 6SL3120-2TE21-0AA4

Applications:

• Multi-axis motion control in machine tools (CNC, milling, turning)

• High-performance robotics and handling systems

• Packaging and printing machinery

• Textile and converting equipment

• High-dynamic servo applications requiring up to 650 Hz output frequency

• Safety-critical applications requiring SIL 2 / PL d compliance

• Dual-motor control in a compact footprint

Technical Specifications:

System Compatibility:

• Siemens SINAMICS S120 modular drive system

• SINAMICS S120 Control Units (CU320-2, etc.)

• DRIVE-CLiQ interface for communication with control units and other system components

• Compatible with SINAMICS S120 line modules (Basic Line Modules, Smart Line Modules, Active Line Modules)

• Suitable for controlling synchronous and asynchronous motors

• One-to-one replacement for 6SL3120-2TE21-0AA4

Typical System Architecture:
SINAMICS S120 Line Module (e.g., Active Line Module)
↓
DC Link (600V DC)
↓
6SL3120-2TE21-0AD0 Double Motor Module (Booksize D-Type)
│
├── Channel 1: 3AC 400V, 9A → Motor 1 (Synchronous / Asynchronous)
├── Channel 2: 3AC 400V, 9A → Motor 2 (Synchronous / Asynchronous)
│
↓
DRIVE-CLiQ Interface → SINAMICS S120 Control Unit
↓
SINAMICS S120 Safety Integrated Functions (SIL 2 / PL d)

Related Products:

• 6SL3120-2TE21-8AC0 – 2 x 18A version (higher current)

• 6SL3120-2TE21-8AD0 – 2 x 18A version (higher current)

• 6SL3120-2TE15-0AD0 – 2 x 5A version (lower current)

• 6SL3130-7TE21-6AA4 – Active Line Module for SINAMICS S120

• 6SL3100-0BE23-0AA0 – DRIVE-CLiQ Hub Module

• 6SL3055-0AA00-4BA0 – SINAMICS S120 Memory Card (CF card)

• 6SL3060-4AF00-0AA0 – DRIVE-CLiQ cable (pre-assembled, various lengths)

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Siemens, SINAMICS, and DRIVE-CLiQ are trademarks of Siemens AG.
