6SL3210-1KE15-8AF2 SINAMICS G120C 2.2kW AC Drive Class A Filter | Siemens

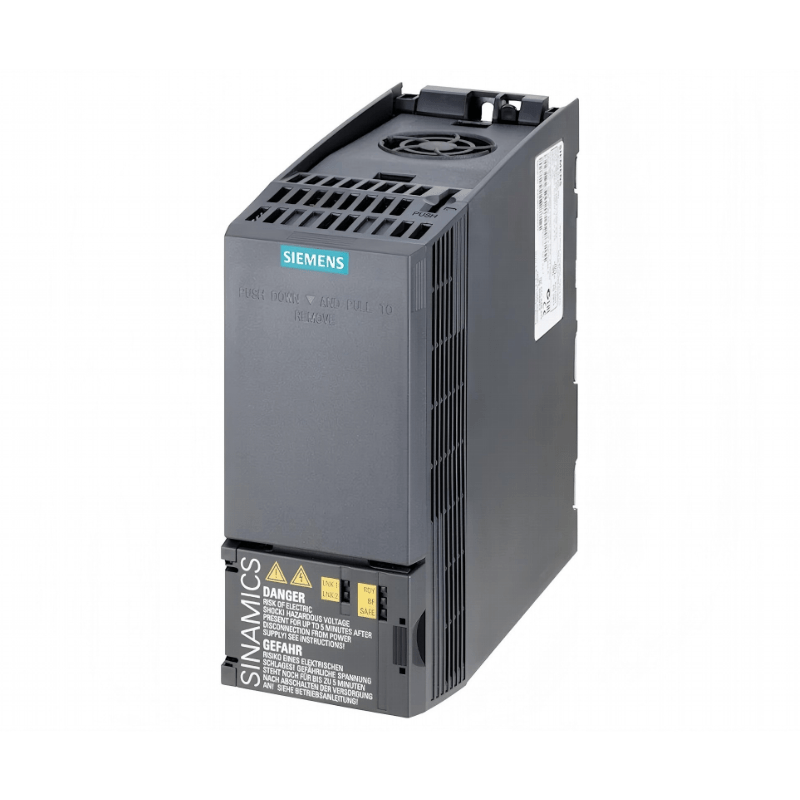

The Original New Siemens 6SL3210-1KE15-8AF2 SINAMICS G120C 2.2kW AC Drive is a compact, high-performance variable frequency drive designed for precise motor speed control in industrial automation systems. Featuring an integrated Class A EMC filter, built-in PROFINET fieldbus with EtherNet/IP support, and Safe Torque Off (STO) safety function, this drive delivers reliable performance for a wide range of applications including conveyors, pumps, fans, and packaging machinery. Its compact FSAA frame size and modular design with removable control board enable flexible installation and simplified commissioning.

Core Engineering Highlights:
2.2 kW (LO) / 1.5 kW (HO) output power | 3AC 380-480V +10/-20% input | 5.6A (LO) / 4.1A (HO) output current | 0-550 Hz output frequency | Integrated Class A EMC filter | PROFINET with EtherNet/IP support | Safe Torque Off (STO) integrated | FSAA frame size (173 x 73 x 160 mm) | IP20 / UL Open Type

Key Features:

• Original New Siemens 6SL3210-1KE15-8AF2 drive

• Low Overload (LO): 2.2 kW at 150% for 3s / 110% for 57s / 100% continuous

• High Overload (HO): 1.5 kW at 200% for 3s / 150% for 57s / 100% continuous

• Integrated Class A EMC filter for reduced electromagnetic emissions

• Built-in PROFINET fieldbus with EtherNet/IP support

• Safe Torque Off (STO) safety function — no additional external components required

• External 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t

• Compact FSAA frame size: 173 x 73 x 160 mm (H x W x D)

• IP20 / UL Open Type enclosure for control cabinet installation

• Integral keypad with LED display for local control

• Built-in brake chopper for dynamic braking

• Vector control and V/f control methods

• Output frequency range: 0-550 Hz

• Operating temperature: –10°C to +40°C

• Card slot for cloning parameter sets for intuitive series commissioning

• Part of Totally Integrated Automation (TIA) — works optimally with SIMATIC controllers

• This product is a spare part

Applications:

• Conveyor belt speed control and material handling

• Mixer and agitator speed regulation

• Pump and compressor control

• Fan and ventilation systems

• Packaging machinery

• OEM machine automation

• Industrial process control

Technical Specifications:

System Compatibility:

• Siemens SIMATIC S7-1200 controllers via PROFINET

• SIMATIC S7-1500 controllers via PROFINET

• SIMATIC S7-300 / S7-400 controllers via PROFINET

• Third-party controllers supporting PROFINET or EtherNet/IP

• SINAMICS G120C series architecture

• Totally Integrated Automation (TIA) environment

Typical System Architecture:
3AC 380-480V Power Supply
↓
6SL3210-1KE15-8AF2 SINAMICS G120C Drive (FSAA Frame)
│
├── PROFINET/EtherNet/IP → SIMATIC Controller (S7-1200 / S7-1500)
├── I/O Interface (6DI / 2DO / 1AI / 1AO) → Field Devices
├── Safe Torque Off (STO) → Safety Circuit
│
↓
Three-Phase Induction Motor (up to 2.2kW LO / 1.5kW HO)

Related Products:

• 6SL3210-1KE14-3UF2 – 1.5kW (LO) / 1.1kW (HO), unfiltered, FSAA

• 6SL3210-1KE15-8UF2 – 2.2kW (LO) / 1.5kW (HO), unfiltered, FSAA (same power, no EMC filter)

• 6SL3210-1KE17-5AF1 – 3.0kW (LO) / 2.2kW (HO), Class A filter, FSA (larger frame)

• 6SL3201-0BE14-3AA0 – Braking resistor for SINAMICS G120C

• 6SL3203-0CE13-2AA0 – Line reactor

• 6SL3255-0AA00-4CA1 – BOP-2 Basic Operator Panel

• 6SL3255-0AA00-5AA0 – SINAMICS G120 Smart Access Module

• 6SL3256-0AP00-0JA0 – Door mounting kit IP54/UL Type 12
