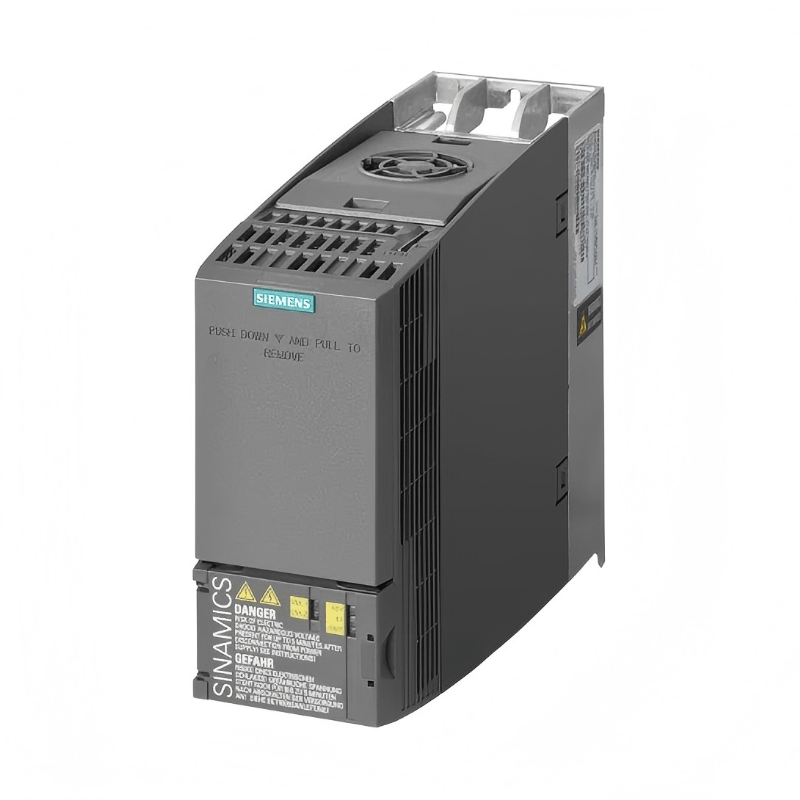

6SL3210-1KE17-5AF1 SINAMICS G120C 3.0kW AC Drive Class A Filter FSA | Siemens

The Original New Siemens 6SL3210-1KE17-5AF1 SINAMICS G120C 3.0kW AC Drive is a compact, high-performance variable frequency drive designed for precise motor speed control in industrial automation systems. Featuring an integrated Class A EMC filter, built-in PROFINET fieldbus with EtherNet/IP support, and Safe Torque Off (STO) safety function, this drive delivers reliable performance for a wide range of applications including conveyors, pumps, fans, and packaging machinery. Its compact FSA frame size and modular design with removable control board enable flexible installation and simplified commissioning.

Core Engineering Highlights:
3.0 kW (LO) / 2.2 kW (HO) output power | 3AC 380-480V +10/-20% input | 9.5A (LO) / 5.6A (HO) rated current | 0-550 Hz output frequency | Integrated Class A EMC filter | PROFINET with EtherNet/IP support | Safe Torque Off (STO) integrated | FSA frame size (196 x 73 x 200 mm) | IP20 / UL Open Type | 97% efficiency | –10°C to +40°C operating

Key Features:

• Original New Siemens 6SL3210-1KE17-5AF1 drive

• Low Overload (LO): 3.0 kW at 150% for 3s / 110% for 57s / 100% continuous

• High Overload (HO): 2.2 kW at 200% for 3s / 150% for 57s / 100% continuous

• Integrated Class A EMC filter for reduced electromagnetic emissions

• Built-in PROFINET fieldbus with EtherNet/IP support

• Safe Torque Off (STO) safety function — no additional external components required

• External 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t

• Compact FSA frame size: 196 x 73 x 200 mm (H x W x D)

• IP20 / UL Open Type enclosure for control cabinet installation

• Integral part of Totally Integrated Automation (TIA) — works optimally with SIMATIC controllers

• Card slot for cloning parameter sets for intuitive series commissioning

• Precise energy-optimized sensorless vector control (SLVC) with automatic flux reduction

• UL, cUL, CE, and C-Tick (RCM) certified

• Country of Origin: United Kingdom

Applications:

• Conveyor belt speed control and material handling

• Mixer and agitator speed regulation

• Pump and compressor control

• Fan and ventilation systems

• Packaging machinery and OEM automation

• Food and beverage processing equipment

Technical Specifications:

• Catalog Number: 6SL3210-1KE17-5AF1

• Product Family: SINAMICS G120C

• Frame Size: FSA

• Low Overload Power: 3.0 kW (4.0 HP)

• High Overload Power: 2.2 kW (3.0 HP)

• Low Overload Current: 9.5 A

• High Overload Current: 5.6 A

• Maximum Output Current: 11.2 A

• Input Voltage: 3AC 380-480V +10/-20%

• Input Frequency: 47-63 Hz

• Rated Output Voltage: 3AC 400V (IEC) / 480V (NEC)

• Output Frequency (Vector Control): 0-240 Hz

• Output Frequency (V/f Control): 0-550 Hz

• Pulse Frequency: 4 kHz

• Efficiency: 97%

• Overload (LO): 150% for 3s / 110% for 57s / 100% continuous

• Overload (HO): 200% for 3s / 150% for 57s / 100% continuous

• EMC Filter: Integrated Class A

• Safety Function: Safe Torque Off (STO) integrated

• Fieldbus: PROFINET-PN with EtherNet/IP

• I/O Interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t (external 24V)

• Control Methods: Vector control, V/f control

• Cooling: Air cooling with integrated fan

• Protection Rating: IP20 / UL Open Type

• Dimensions (H x W x D): 196 x 73 x 200 mm

• Weight: Approx. 2.3 kg

• Ambient Temperature: –10°C to +40°C

• Installation Altitude: Up to 1,000 m without derating

• Mounting: Wall mounting

• Certifications: CE, cULus, C-Tick (RCM)

• EAN: 4042948663820

System Compatibility:

• Siemens SIMATIC S7-1200 controllers via PROFINET

• SIMATIC S7-1500 controllers via PROFINET

• SIMATIC S7-300 / S7-400 controllers via PROFINET

• Third-party controllers supporting PROFINET or EtherNet/IP

• SINAMICS G120C series architecture

• Totally Integrated Automation (TIA) environment

Typical System Architecture:
3AC 380-480V Power Supply
↓
6SL3210-1KE17-5AF1 SINAMICS G120C Drive (FSA Frame)
│
├── PROFINET/EtherNet/IP → SIMATIC Controller (S7-1200 / S7-1500)
├── I/O Interface (6DI / 2DO / 1AI / 1AO) → Field Devices
├── Safe Torque Off (STO) → Safety Circuit
│
↓
Three-Phase Induction Motor (up to 3.0kW LO / 2.2kW HO)

Related Products:

• 6SL3210-1KE15-8AF2 – 2.2kW (LO) / 1.5kW (HO), Class A filter, FSAA

• 6SL3210-1KE17-5AF1 – 3.0kW (LO) / 2.2kW (HO), Class A filter, FSA (current model)

• 6SL3210-1KE21-3AF1 – 5.5kW (LO) / 4.0kW (HO), Class A filter, FSB

• 6SL3201-0BE17-5AA0 – Braking resistor for SINAMICS G120C (FSA frame)

• 6SL3203-0CE17-5AA0 – Line reactor for FSA frame

• 6SL3255-0AA00-4CA1 – BOP-2 Basic Operator Panel

• 6SL3255-0AA00-5AA0 – SINAMICS G120 Smart Access Module

• 6SL3256-0AP00-0JA0 – Door mounting kit IP54/UL Type 12
