6SL3210-1KE22-6AF1 SINAMICS G120C 11kW AC Drive PROFINET | Siemens

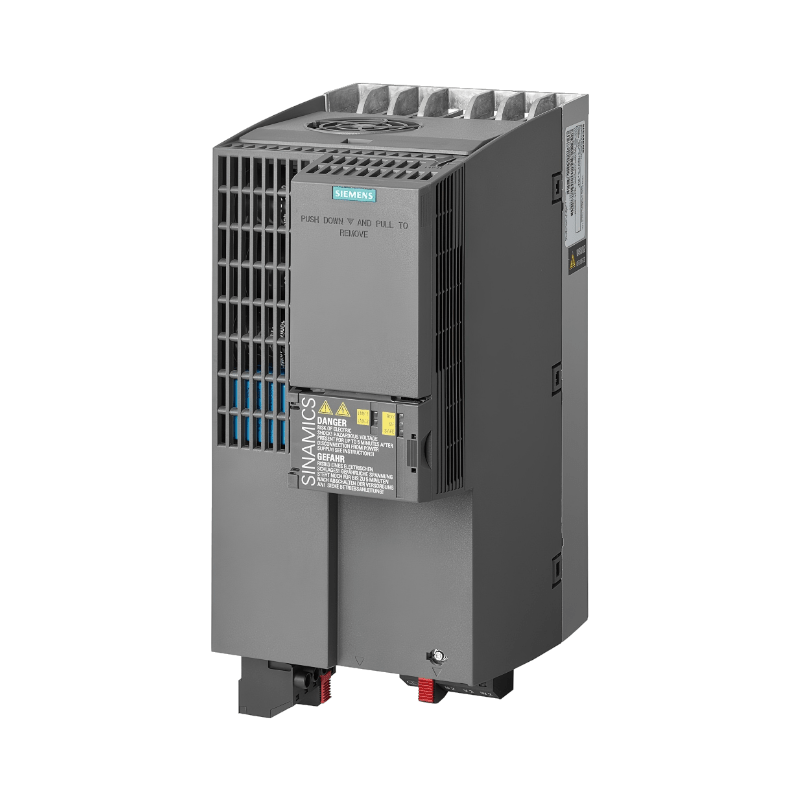

The Original New Siemens 6SL3210-1KE22-6AF1 SINAMICS G120C Compact Converter is a versatile, high-performance variable frequency drive designed for demanding motor control applications in industrial automation systems. Rated at 11 kW (Low Overload) / 7.5 kW (High Overload) with 3AC 380-480V input, this drive delivers exceptional power density in a compact FSC frame size. Featuring integrated Class A EMC filter, PROFINET-PN communication, and Safe Torque Off (STO) safety function, it provides seamless integration with SIMATIC controllers and TIA Portal engineering framework.

Core Engineering Highlights:
11 kW Low Overload / 7.5 kW High Overload | 3AC 380-480V input | 33A output current | PROFINET-PN + EtherNet/IP communication | Integrated Class A EMC filter | Safe Torque Off (STO) | 6DI / 2DO / 1AI / 1AO | 1 x motor temperature input (Mot_T) | IP20 / UL Open Type enclosure | FSC frame size (295 x 140 x 205 mm) | –10°C to +40°C operating temperature

Key Features:

• Original New Siemens 6SL3210-1KE22-6AF1 drive

• 11.0 kW Low Overload capacity: 150% for 3s / 110% for 57s / 100% continuous

• 7.5 kW High Overload capacity: 200% for 3s / 150% for 57s / 100% continuous

• 3AC 380-480V +10/-20% input voltage, 47-63Hz

• Integrated Class A EMC filter for reduced electromagnetic emissions

• PROFINET-PN fieldbus with integrated EtherNet/IP support

• Safe Torque Off (STO) certified safety function

• External 24V I/O interface: 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output, 1 motor temperature input (Mot_T)

• FSC frame size with compact 295 x 140 x 205 mm (H x W x D)

• IP20 / UL Open Type enclosure

• Forced air cooling

• Wall mounting (panel mount)

• Output frequency up to 550 Hz

• High power density with space-saving design

• Seamless integration with Totally Integrated Automation (TIA)

• Supports SINAMICS Smart Access Module for wireless commissioning

Applications:

• Conveyor speed control and material handling systems

• Pump and fan control for energy-efficient operation

• Packaging machinery and OEM equipment

• Mixers, agitators, and industrial process equipment

• Compressors and centrifugal machines

• General industrial automation and machine control

• Applications requiring up to 11kW motor control with integrated safety

Technical Specifications:

System Compatibility:

• Siemens SIMATIC S7-1200, S7-1500 controllers via PROFINET

• SIMATIC S7-300 / S7-400 controllers via PROFINET

• TIA Portal engineering framework

• SINAMICS G120C series architecture

• Third-party controllers supporting PROFINET or EtherNet/IP

• SINAMICS G120 Smart Access Module for wireless commissioning

• Basic Operator Panel (BOP-2) and Intelligent Operator Panel (IOP-2)

Typical System Architecture:
3AC 380-480V Power Supply
↓
6SL3210-1KE22-6AF1 SINAMICS G120C Drive (FSC Frame)
│
├── PROFINET-PN / EtherNet/IP → SIMATIC S7-1200 / S7-1500 Controller
├── 6 Digital Inputs → Sensors / Switches / Pushbuttons
├── 2 Digital Outputs → Status / Alarm Signals
├── 1 Analog Input → Process Feedback (4-20mA / 0-10V)
├── 1 Analog Output → Process Control Signal
├── 1 Mot_T Input → Motor Temperature Monitoring (PTC/KTY84)
└── Safe Torque Off (STO) → Safety Circuit
↓
Three-Phase Induction Motor (up to 11kW LO / 7.5kW HO)
↓
TIA Portal Engineering (Commissioning & Parameterization)

Related Products:

• 6SL3210-1KE21-3AF1 – 7.5kW LO / 5.5kW HO, FSC (lower power)

• 6SL3210-1KE22-6AF1 – 11kW LO / 7.5kW HO, FSC (current model)

• 6SL3210-1KE23-8AF1 – 15kW LO / 11kW HO, FSC (higher power)

• 6SL3255-0AA00-4CA1 – BOP-2 Basic Operator Panel

• 6SL3255-0AA00-4JA0 – IOP-2 Intelligent Operator Panel

• 6SL3255-0AA00-5AA0 – SINAMICS G120 Smart Access Module

• 6SL3201-0BE23-8AA0 – Braking resistor (30Ω, 18.5kW)

• 6SL3203-0CE23-8AA0 – Line reactor (47A)

• 6SL3202-0AE23-8CA0 – Output reactor (39A, 0.11MW)

• 6SL3256-0AP00-0JA0 – Door mounting kit IP54/UL Type 12

• 6SL3210-1KE22-6UF1 – Unfiltered version (external filter required)
