6SL3210-1PE14-3AL1 SINAMICS PM240-2 1.5kW Power Module FSA | Siemens

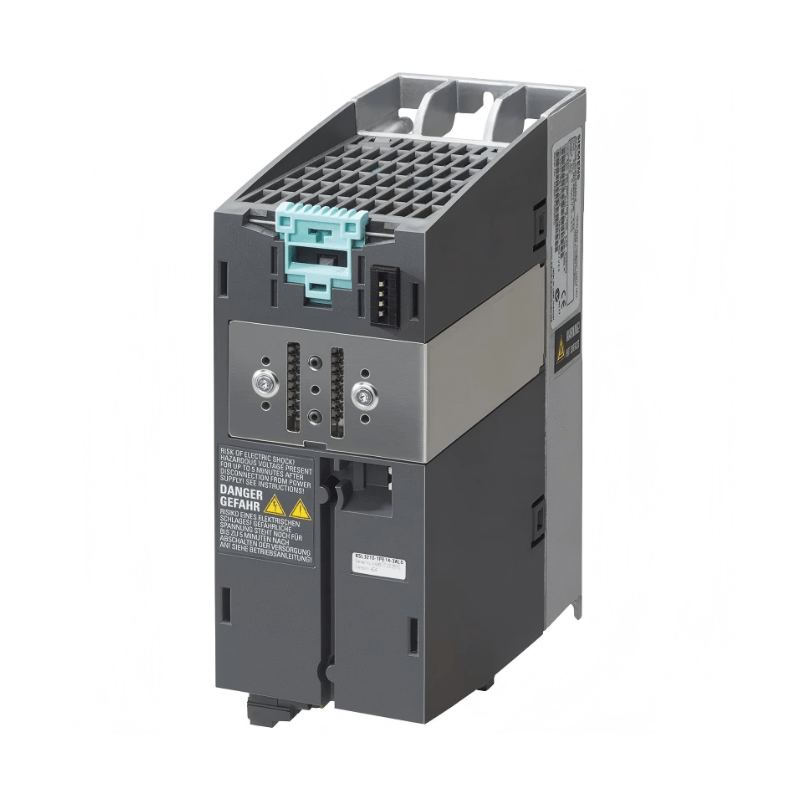

The Original New Siemens 6SL3210-1PE14-3AL1 SINAMICS PM240-2 Power Module is a key component of the modular SINAMICS G120 drive system, providing the power stage for motor control applications. Featuring an integrated Class A EMC filter and built‑in braking chopper, this FSA frame size module delivers up to 1.5 kW (Low Overload) or 1.1 kW (High Overload) at 380‑480V 3AC input. Designed as a built‑in device for control cabinet installation, the module supports flexible combination with various Control Units (CU240B‑2, CU240E‑2, CU250S‑2) and operator panels to create a complete SINAMICS G120 frequency converter. Power module only — control unit and operator panel must be ordered separately.

Core Engineering Highlights:
1.5 kW Low Overload / 1.1 kW High Overload | 3AC 380-480V +10/-10% input | 4.1A (LO) / 3.1A (HO) output current | 6.2A maximum output current | Integrated Class A EMC filter | Built-in braking chopper | FSA frame size (196 x 73 x 165 mm) | IP20 protection | Requires Control Unit (CU) firmware V4.6 or higher | 96% efficiency | 0.07 kW power loss

Key Features:

• Original New Siemens 6SL3210-1PE14-3AL1 power module

• Low Overload (LO): 1.5 kW at 150% for 3s / 110% for 57s / 100% continuous (–10°C to +40°C ambient)

• High Overload (HO): 1.1 kW at 200% for 3s / 150% for 57s / 100% continuous (–10°C to +50°C ambient)

• Integrated Class A EMC filter for reduced electromagnetic emissions

• Built-in braking chopper for dynamic braking and four‑quadrant applications

• Vector control up to 200 Hz and V/f control up to 550 Hz

• Plug‑in screw terminals for line and motor connections

• Part of the modular SINAMICS G120 drive system — combines with Control Unit (CU) and operator panel

• Requires Control Unit firmware version V4.6 or higher

• FSA frame size: 196 x 73 x 165 mm (H x W x D)

• IP20 / UL Open Type protection for control cabinet installation

• 3AC 380-480V +10/-10% input, 47-63Hz

• Output frequency range: 0‑550 Hz (V/f control)

• Efficient operation: 96% efficiency, 0.07 kW power loss

• CE, cULus certified

• Active product lifecycle (PM300)

Applications:

• Conveyor and material handling systems

• Pumps, fans, and compressors

• Packaging machinery

• General mechanical engineering and OEM applications

• Retrofit and new SINAMICS G120 drive systems

• Applications requiring dynamic braking with built‑in chopper

• Four‑quadrant operation applications (with braking resistor)

Technical Specifications:

System Compatibility:

• Siemens SINAMICS G120 modular drive system

• Compatible Control Units: CU240B‑2, CU240E‑2, CU250S‑2

• Requires Control Unit firmware version V4.6 or higher

• Operator panels: BOP‑2, IOP‑2

• SINAMICS G120 Smart Access Module (optional)

• Line reactors, output reactors, braking resistors (accessories)

• SIMATIC S7‑1200, S7‑1500 controllers (via Control Unit)

Typical System Architecture:
3AC 380-480V Mains Supply
↓
6SL3210-1PE14-3AL1 PM240-2 Power Module (FSA Frame)
│
├── Control Unit (e.g., CU250S-2 PN) → PROFINET / PLC
├── Integrated Class A Filter → EMC Compliance
├── Integrated Braking Chopper → Dynamic Braking
├── Operator Panel (BOP‑2 / IOP‑2) → Local Control
│
↓
Three‑Phase Motor (up to 1.5kW LO / 1.1kW HO)

Related Products:

• 6SL3246-0BA22-1FA0 – CU250S‑2 PN Control Unit (PROFINET, vector control)

• 6SL3244-0BA20-1PA0 – CU240B‑2 Control Unit (basic, PROFIBUS)

• 6SL3244-0BB12-1PA0 – CU240E‑2 Control Unit (PROFINET)

• 6SL3255-0AA00-4CA1 – BOP‑2 Basic Operator Panel

• 6SL3255-0AA00-5AA0 – SINAMICS G120 Smart Access Module

• 6SL3201-0BE14-3AA0 – Braking resistor for FSA frame size

• 6SL3203-0CE13-2AA0 – Line reactor for FSA frame size

• 6SL3202-0AE16-1CA0 – Output reactor for FSA frame size

• 6SL3256-0AP00-0JA0 – Door mounting kit IP54/UL Type 12

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Siemens, SINAMICS, and DRIVE‑CLiQ are trademarks of Siemens AG.
