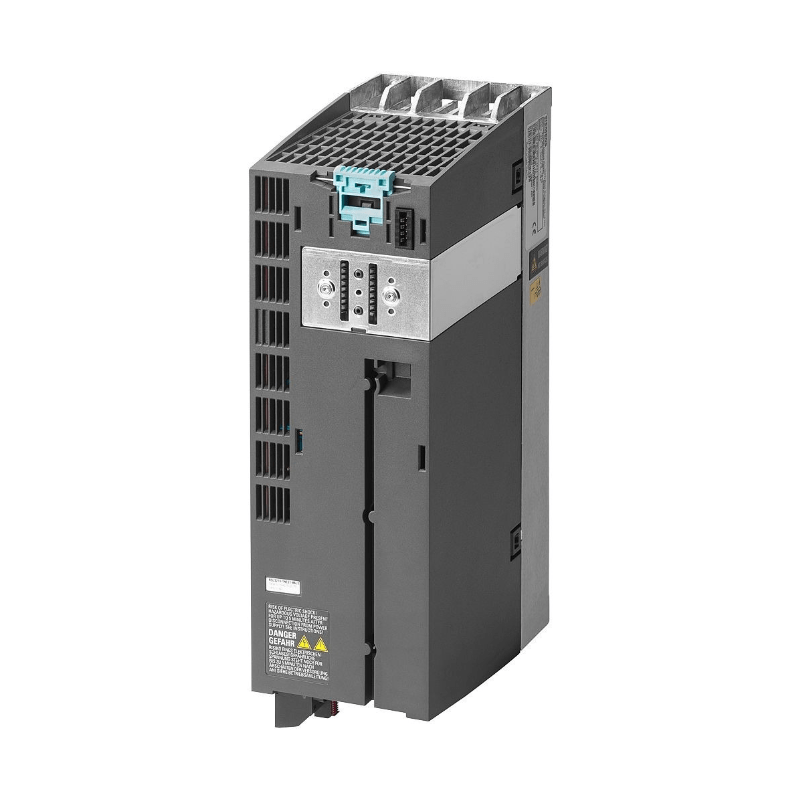

Siemens 6SL3210-1PE21-8AL0 SINAMICS PM240-2 Power Module 7.5kW 400V 3‑Phase FSB
Siemens 6SL3210-1PE21-8AL0 SINAMICS PM240-2 Power Module 7.5kW 400V 3‑Phase FSB
62 in stock
Couldn't load pickup availability
SINAMICS PM240-2 power module with integrated Class A EMC filter and integrated braking chopper, serving as the power stage for SINAMICS G120 variable frequency drives in 380‑480V industrial automation systems.
The Siemens 6SL3210-1PE21-8AL0 is a PM240‑2 power module designed for use with SINAMICS G120 Control Units (CU240‑2, CU250S‑2). It converts 3‑phase 400V AC input into a regulated motor output, providing 7.5kW low overload capacity (‑10°C to +40°C) and 5.5kW high overload capacity (‑10°C to +50°C). The module requires an external Control Unit for operation (sold separately) and is approved for use from CU firmware version V4.6 onwards．
Applications
-
Variable speed control of pumps, fans, compressors, and material handling conveyors
-
Heavy‑duty cycles in mixers, extruders, cranes, and hoisting equipment
-
High overload requirements in punching, shearing, and stamping presses
-
Factory automation and process control systems with occasional peak loads
-
Retrofit and upgrade of existing G120 drive systems
Key Features
-
Integrated Class A EMC filter (conducted emission limits per IEC 61800‑3 Category C2)
-
Built‑in braking chopper for external braking resistor connection
-
FSB size (291 mm high, 100 mm wide, 165 mm deep)
-
Heavy duty rating allows operation up to +50°C ambient temperature
-
Protected with IP20, intended for control cabinet installation
-
Compatible with G120 Control Units and intelligent operator panels (BOP‑2, IOP‑2)
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Siemens |
| Model | 6SL3210-1PE21-8AL0 |
| Product Type | SINAMICS PM240‑2 Power Module |
| Input Voltage | 3‑phase 380‑480V ±10% |
| Low Overload Power (LO) | 7.5 kW (150% for 3 s, 110% for 57 s) |
| High Overload Power (HO) | 5.5 kW (200% for 3 s, 150% for 57 s) |
| Overload Capacity (LO / HO) | 100% for 240 s |
| Ambient Temp. (LO) | -10 °C to +40 °C |
| Ambient Temp. (HO) | -10 °C to +50 °C |
| EMC Filter | Integrated Class A |
| Braking Chopper | Integrated |
| Protection Rating | IP20 / UL Open Type |
| Frame Size | FSB |
| Dimensions (H × W × D) | 291 × 100 × 165 mm |
| Weight | approx. 3.2 kg |
| Control Unit | NOT included (order separately) |
| Operator Panel | NOT included (order separately) |
| Minimum CU Firmware | V4.6 (required) |
| Certifications | CE, RoHS, UL, cUL, EAC, RCM |
System Integration
-
Compatible Control Units: SINAMICS G120 CU240‑2, CU250S‑2 (sold separately) for different applications
-
Communication: PROFINET and PROFIsafe via the Control Unit‘s options
-
Operator Panels: Basic Operator Panel BOP‑2 (6SL3255‑0AA00‑4BA1) or Intelligent Operator Panel IOP‑2 (6SL3255‑0AA00‑4JA0) for local control
-
Engineering Software: STARTER offline / SINAMICS Startdrive (TIA Portal)
-
Motor Compatibility: Asynchronous and synchronous motors (use requires a Control Unit that supports the required motor type)
-
Performance Classes: Standard Drive Control (with CU240‑2) and High‑Performance Vector Control (with CU250S‑2), depending on Control Unit version
Related Products
-
Control Unit: Siemens 6SL3244‑0BB12‑1FA0 – CU240‑2 PN (PROFINET) for standard drive applications
-
Control Unit for Positioning: Siemens 6SL3246‑0BA22‑1FA0 – CU250S‑2 (PROFINET) for vector control and basic positioning EPOS
-
Braking Resistor: Siemens 6SL3201‑0BE21‑8AA0 – for PM240‑2 FSB, 28 Ω, external braking resistor (Note: suitability must be verified, see system manual)
-
Basic Operator Panel: Siemens 6SL3255‑0AA00‑4BA1 – BOP‑2 for commissioning and parameter access
-
Input Choke: Siemens 6SL3202‑0AE21‑8CA0 – line reactor for PM240‑2 FSB; required to meet certain EMC standards in specific installations
