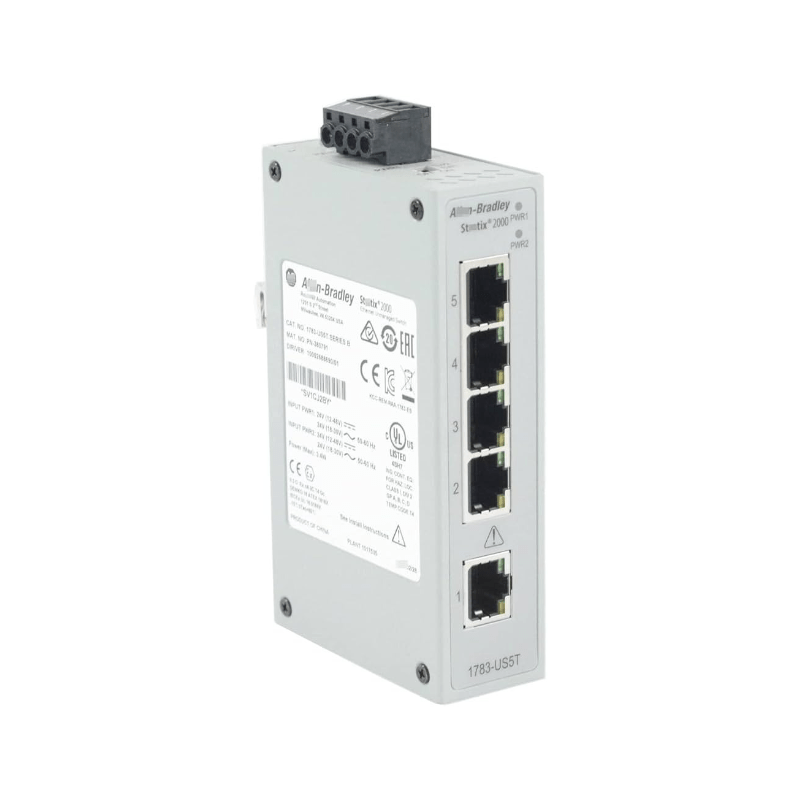

Allen‑Bradley 1783‑US5T Stratix 2000 Unmanaged Ethernet Switch 5 Port 10/100 Mbps

Industrial unmanaged Ethernet switch with 5 RJ45 ports, 10/100 Mbps auto‑negotiation, and DIN rail mounting for factory automation networks.

Applications:

• Small industrial network expansion

• PLC and HMI communication

• Control cabinet Ethernet connectivity

• Packaging machine networks

• Conveyor system device links

Key Features:

• 5 RJ45 10/100 Mbps ports

• Plug‑and‑play (unmanaged) operation

• Auto‑MDI/MDI‑X crossover detection

• DIN rail mountable

• 24V DC power input (10‑28.8V DC)

• -20°C to 70°C operating temperature

Technical Specifications:

• Ports: 5 RJ45 (10/100 Mbps)

• Mode: Unmanaged

• Mounting: DIN rail

• Power: 24V DC (10‑28.8V DC)

• Operating temperature: -20°C to 70°C

• Protection: IP20

System Integration:

• Controllers: CompactLogix, ControlLogix, MicroLogix (via EtherNet/IP)

• Network Topology: Star, daisy‑chain, small linear segments

• HMI: PanelView 800, PanelView Plus 7

• Drives: PowerFlex 525 series

Related Products:

• Higher Port Count: 1783‑US8T Stratix 2000 (8 ports) – expansion

• Controller: 1769‑L33ER CompactLogix – system core

• HMI: 2711P‑T7C21D8S PanelView Plus 7 – operator interface

• Drive: 25B‑D6P0N114 PowerFlex 525 – motor control
