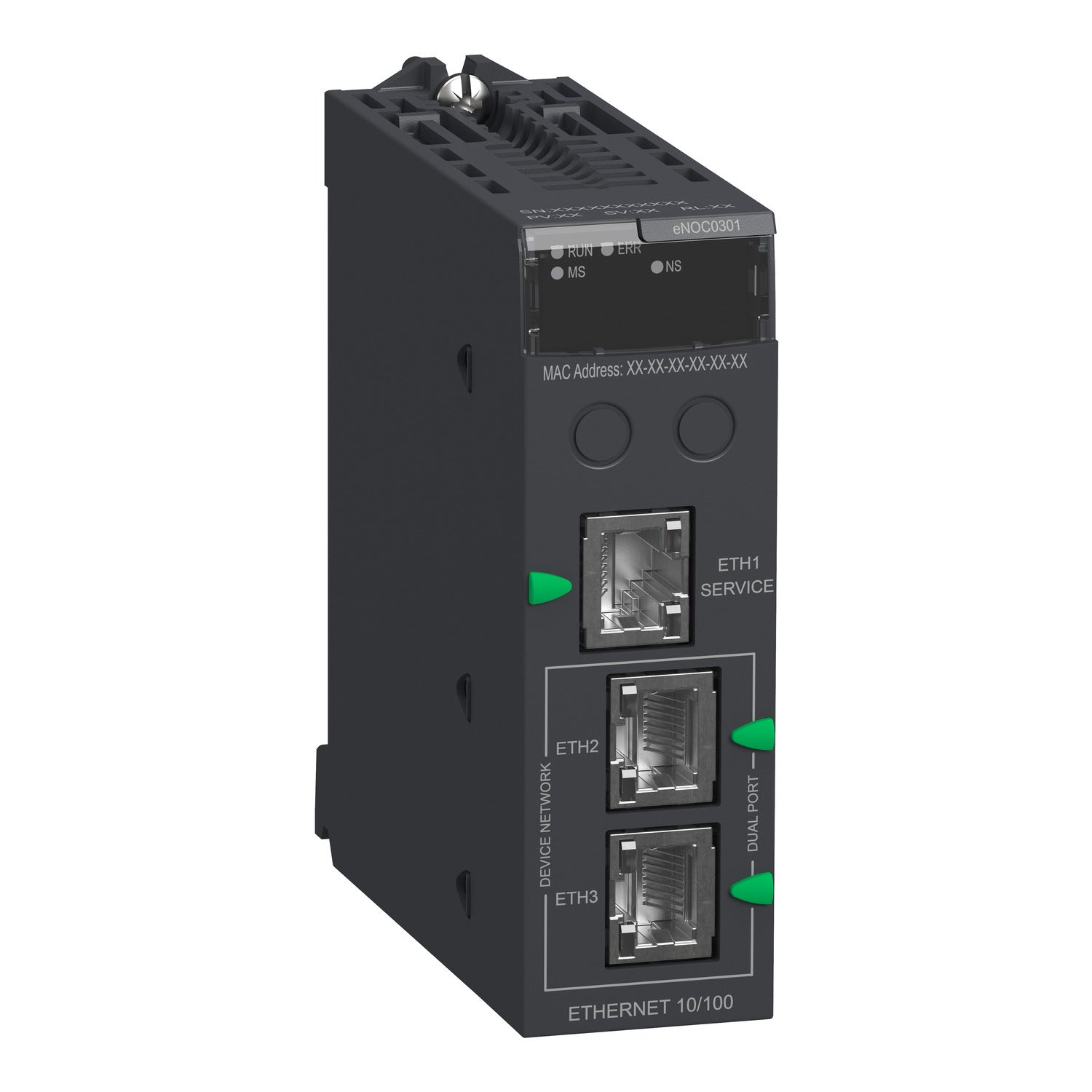

Schneider BMENOC0301 Modicon M580 Ethernet Communication Module 3 Ports

Schneider Electric Modicon M580 BMENOC0301 is an Ethernet communication module with 3 RJ45 ports for the Modicon M580 ePAC system. It supports Modbus TCP and EtherNet/IP protocols simultaneously, enabling real‑time data exchange between the PAC and connected devices. Designed for medium to large process applications requiring high‑speed, reliable network connectivity.

Applications:

• Controller‑to‑controller communication in M580 systems

• SCADA system integration via Ethernet and IP

• Multi‑device industrial network management (up to 128 devices)

• Process automation applications requiring Modbus TCP or EtherNet/IP

Core Specifications:

• Number of ports: 3 Ethernet RJ45, 10/100 Mbit/s

• Protocols: Modbus TCP (client/server, I/O scanner), EtherNet/IP (adapter/scanner)

• Connection capacity: 128 EtherNet/IP or Modbus/TCP devices (client/scanner) | 16 EtherNet/IP adapter instances (server)

• Communication services: bandwidth management, FDR server, embedded multiport switch, RSTP, SNMP network administrator, embedded web server

• Ring topologies: on 2 Ethernet ports using RSTP（Rapid Spanning Tree Protocol）

• Compatibility: BMEXBP… Ethernet + X‑bus rack

• Power consumption: internal power via rack, ≤555 mA

• Operating temperature: 0…60 °C (32…140 °F)

• Protection rating: IP20

Advanced Specifications:

• Current consumption: 555 mA

• CE and UL certified

• Standards: EN 61131‑2, EN 61000‑6‑4, EN 61000‑6‑2, EN 61010‑2‑201

• Weight: 0.2 kg

System Integration:

• This module belongs to the Modicon M580 range and fits into the Ethernet + X‑bus slot of the main rack (BMEXBP… series). The module acts as a network bridge for the CPU, supporting simultaneous Modbus TCP and EtherNet/IP communication.

• Configuration is performed using EcoStruxure Control Expert（formerly Unity Pro）.

Related Products (upgrade path):

• Entry level → BMXNOC0402 (Ethernet/IP and Modbus TCP, 3 ports)

• Current model → BMENOC0301 (Ethernet/IP and Modbus TCP, 3 ports)

• Higher feature → BMENOC0311 (same functions as BMENOC0301, plus FactoryCast services)

• Replacement for legacy → Replaces 140NOM21200 / 140NOM21100 / 140NOE77101 / 140NOC78000 / 140NOC77100
